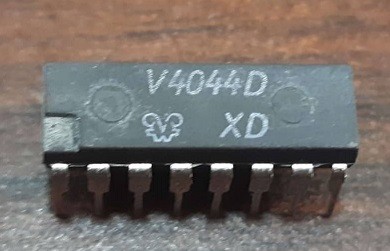

V4044D – DIP

Name: V4044D - DIP
SKU: 2931
Availability: InStock

ریال261.360

CD4044BE,Quad R/S Latch With 3-State-CMOS

4 در انبار

شناسه محصول: 2931 دسته: CMOS Logic, آی سی ها

Product Category: Latches
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Circuits: 1 Circuit
- Logic Type: Converter
- Logic Family: CD4000
- Polarity: Non-Inverting
- Quiescent Current: 20 uA
- Number of Output Lines: 4 Line
- High Level Output Current: – 4.2 mA
- Low Level Output Current: 32 mA
- Propagation Delay Time: 300 ns at 5 V, 140 ns at 10 V, 100 ns at 15 V
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 55 C
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Transparent
- Height: 4.57 mm
- Length: 19.3 mm
- Mounting Style: Through Hole
- Number of Channels: 4 Channels
- Number of Input Lines: 8 Line
- Operating Supply Voltage: 3.3 V, 5 V, 9 V, 12 V, 15 V
- Output Type: 3-State
- Reset Type: No Reset
- Series: CD4044B , TC4044B , HEF4044B , HCF4044B
- Factory Pack Quantity: 25
- Supply Current – Max: 40 nA
- Type: S-R Type
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4044B شامل 4 لچ سه مرحله ای از نوع R-S می باشد.
