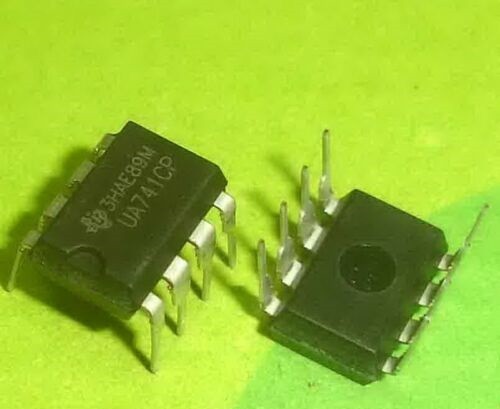

UA741CP – DIP

Name: UA741CP - DIP
SKU: 12344
Availability: InStock

ریال176.418

SINGLE,HIGH GAIN OPAMP-LM741CN

591 در انبار

شناسه محصول: 12344 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Fairchild Semiconductor
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Number of Channels: 1 Channel
- SR – Slew Rate: 0.5 V/us
- CMRR – Common Mode Rejection Ratio: 70 dB
- Ib – Input Bias Current: 500 nA
- Vos – Input Offset Voltage: 6 mV
- Operating Supply Current: 2.8 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Packaging: Tube
- Amplifier Type: General Purpose Amplifier
- Brand: Fairchild Semiconductor
- Height: 3.3 mm
- Length: 9.6 mm (Max)
- Maximum Dual Supply Voltage: +/- 18 V
- Pd – Power Dissipation: 500 mW
- Product: Operational Amplifiers
- PSRR – Power Supply Rejection Ratio: 77 dB
- Factory Pack Quantity: 50
- Supply Type: Dual
- Technology: Bipolar
- Voltage Gain dB: 106.02 dB
- Width: 6.4 mm
- Part # Aliases: LM741CN_NL
- Unit Weight: 1 g
- آی سی LM741 یک آپ امپ شامل یک تقویت کننده عملیاتی پر کاربرد می باشد.
