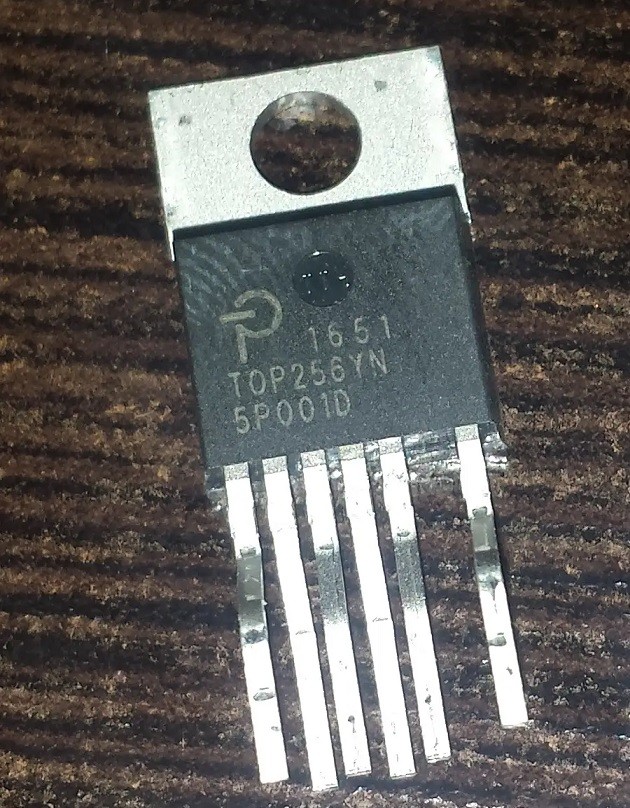

TOP256YN – DIP

Name: TOP256YN - DIP
SKU: 2360
Availability: InStock

ریال2.241.389

AD/DC Switching Concerter

93 در انبار

شناسه محصول: 2360 دسته: Switching Regulator, آی سی ها

Product Category: AC/DC Converters
- Manufacturer: Power Integrations
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: TO-220-7C
- Output Voltage: 700 V
- Input / Supply Voltage – Min: – 0.3 V
- Input / Supply Voltage – Max: 9 V
- Switching Frequency: 132 kHz
- Duty Cycle – Max: 78 %
- Operating Temperature Range: – 40 C to + 150 C
- Output Current: 4.08 A
- Series: TOP256
- Packaging: Tube
- Brand: Power Integrations
- Maximum Operating Temperature: + 150 C
- Minimum Operating Temperature: – 40 C
- Output Power: 119 W
- Factory Pack Quantity: 50
- Tradename: TopSwitch-HX
- Type: Off Line Switcher
- آی سی TOP256 یک TOPSwitch قدرت با توان 119 وات شامل یک ماسفت قدرت ولتاژ بالا، کنترلر PWM و حفاظت می باشد.
