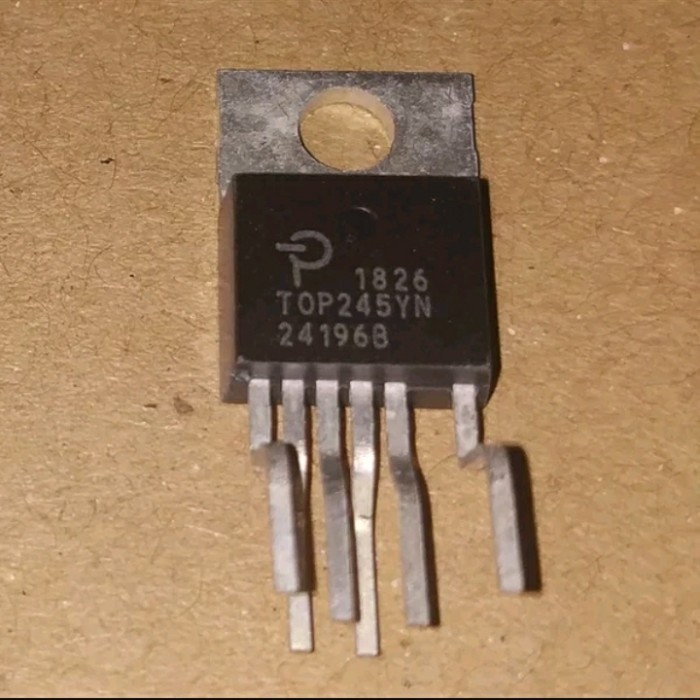

TOP245YN – DIP

Name: TOP245YN - DIP
SKU: 2356
Availability: InStock

ریال1.793.112

Extended Power, Design Flexible, EcoSmart, In

125 در انبار

شناسه محصول: 2356 دسته: Switching Regulator, آی سی ها

Product Category: AC/DC Converters
- Manufacturer: Power Integrations
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: TO-220
- Output Voltage: 12 V
- Input / Supply Voltage – Min: 85 VAC
- Input / Supply Voltage – Max: 265 VAC
- Switching Frequency: 132 kHz
- Duty Cycle – Max: 83 %
- Operating Supply Current: 1.6 mA
- Operating Temperature Range: – 40 C to + 150 C
- Series: TOP245
- Packaging: Tube
- Brand: Power Integrations
- Factory Pack Quantity: 50
- Tradename: TopSwitch
- Type: Off Line Switcher
- Unit Weight: 2,300 g
- آی سی TOP245 یک TOPSwitch قدرت با توان 85 وات شامل یک ماسفت قدرت ولتاژ بالا، کنترلر PWM و حفاظت می باشد.
