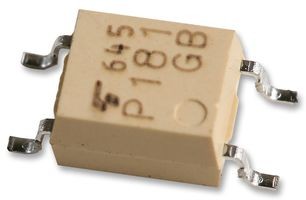

TLP181 – SMD

Name: TLP181 - SMD
SKU: 13681
Availability: InStock

ریال72.600

Single Channel Office Machine Programmable Controllers Ac/Dc-Input Module Telecommunication , Photo transistor, Isolation voltage: 3750Vrms , 4PIN

3601 در انبار

شناسه محصول: 13681 دسته: Optocoupler, آی سی ها

Product Category: Transistor Output Optocouplers
- Manufacturer: Toshiba
- Package / Case: SMD-4
- Output Type: NPN Phototransistor
- Number of Channels: 1 Channel
- If – Forward Current: 16 mA
- Maximum Collector Emitter Voltage: 80 V
- Maximum Collector Current: 10 mA
- Isolation Voltage: 3750 Vrms
- Maximum Collector Emitter Saturation Voltage: 0.4 V
- Vf – Forward Voltage: 1.3 V
- Vr – Reverse Voltage: 5 V
- Pd – Power Dissipation: 200 mW
- Maximum Operating Temperature: + 110 C
- Minimum Operating Temperature: – 55 C
- Series: TLP181
- Brand: Toshiba
- Collector-Emitter Breakdown Voltage: 80 V
- Current Transfer Ratio: 600 %
- Fall Time: 3 us
- Height: 2.5 mm
- Length: 3.6 mm
- Mounting Style: SMD/SMT
- Reference Voltage: –
- Rise Time: 2 us
- Width: 4.4 mm
