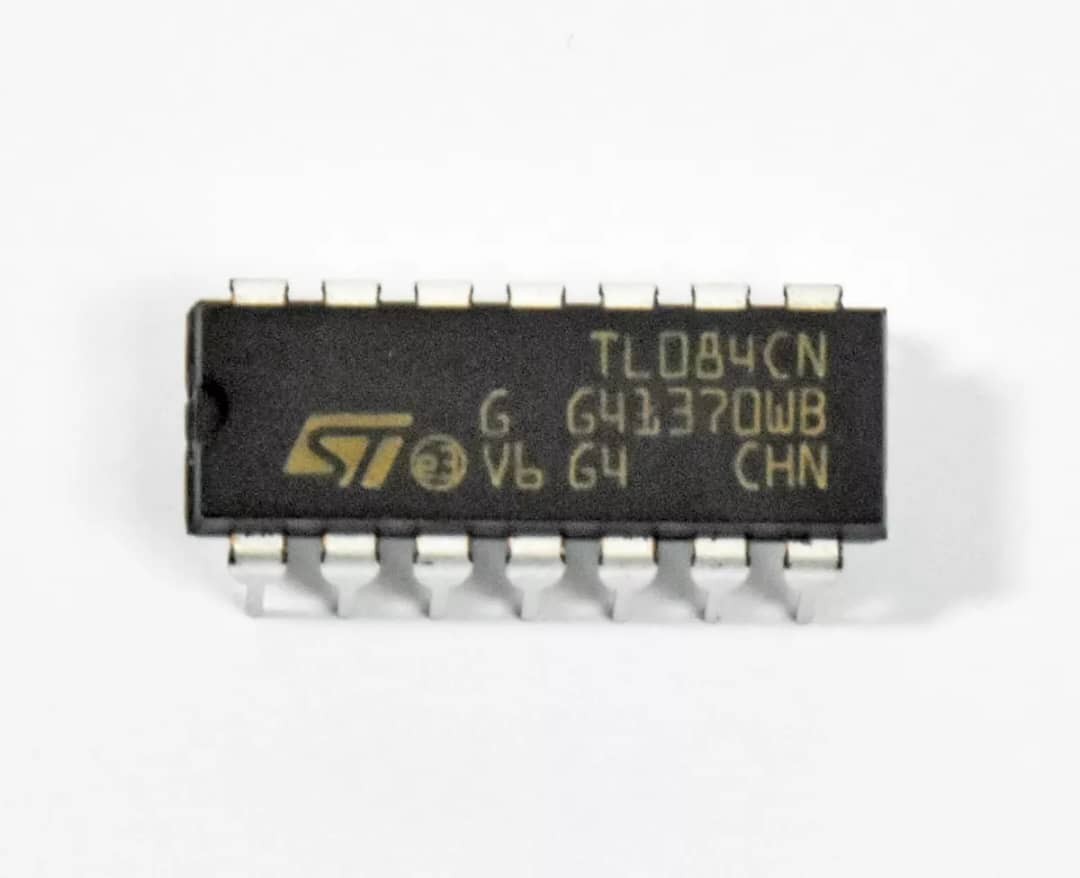

TL084CN – DIP

Name: TL084CN - DIP
SKU: 12376
Availability: InStock

ریال333.234

QUAD,JFET LOW POWER OPAMP

429 در انبار

شناسه محصول: 12376 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: STMicroelectronics
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Supply Voltage – Max: 36 V
- Output Current per Channel: 40 mA
- Number of Channels: 4 Channel
- GBP – Gain Bandwidth Product: 4 MHz
- SR – Slew Rate: 16 V/us
- CMRR – Common Mode Rejection Ratio: 70 dB
- Ib – Input Bias Current: 200 pA
- Vos – Input Offset Voltage: 10 mV
- Supply Voltage – Min: 6 V
- Operating Supply Current: 2.5 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: TL084
- Packaging: Tube
- Amplifier Type: High Speed Amplifier
- Brand: STMicroelectronics
- Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
- en – Input Voltage Noise Density: 15 nV/sqrt Hz
- Height: 5.1 mm (Max)
- Length: 20 mm (Max)
- Maximum Dual Supply Voltage: +/- 18 V
- Minimum Dual Supply Voltage: +/- 3 V
- Operating Supply Voltage: 6 V to 36 V, +/- 3 V to +/- 18 V
- Pd – Power Dissipation: 680 mW
- Product: Operational Amplifiers
- PSRR – Power Supply Rejection Ratio: 70 dB
- Factory Pack Quantity: 25
- Supply Type: Single, Dual
- Technology: BiFET
- Voltage Gain dB: 106.02 dB
- Width: 7.1 mm (Max)
- Unit Weight: 1.620 g
- آی سی TL084یک (آپ امپ )تقویت کننده 4تایی با ورودی JFET و با توان پایین میباشد
