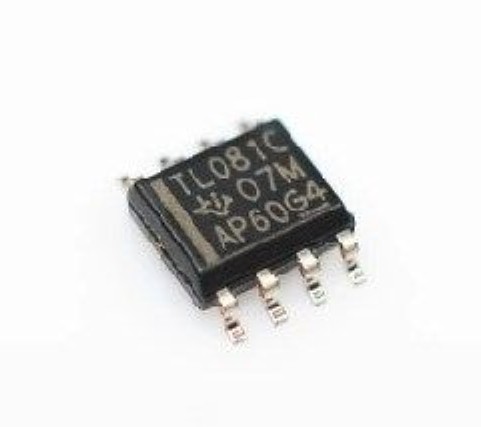

TL081CD – SMD

Name: TL081CD - SMD
SKU: 12373
Availability: InStock

ریال261.360

SINGLE,JFET LOW POWER OPAMP

380 در انبار

شناسه محصول: 12373 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: SOIC-8
- Supply Voltage – Max: 36 V
- Number of Channels: 1 Channel
- GBP – Gain Bandwidth Product: 3 MHz
- SR – Slew Rate: 13 V/us
- CMRR – Common Mode Rejection Ratio: 70 dB
- Ib – Input Bias Current: 400 pA
- Vos – Input Offset Voltage: 15 mV
- Supply Voltage – Min: 7 V
- Operating Supply Current: 2.8 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: TL081
- Packaging: Tube
- Amplifier Type: General Purpose Amplifier
- Brand: Texas Instruments
- Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
- en – Input Voltage Noise Density: 18 nV/sqrt Hz
- Height: 4.57 mm
- In – Input Noise Current Density: 0.01 pA/sqrt Hz
- Length: 9.81 mm
- Maximum Dual Supply Voltage: +/- 18 V
- Minimum Dual Supply Voltage: +/- 3.5 V
- Operating Supply Voltage: 7 V to 36 V, +/- 3.5 V to +/- 18 V
- Pd – Power Dissipation: 670 mW
- Product: Operational Amplifiers
- PSRR – Power Supply Rejection Ratio: 70 dB
- Factory Pack Quantity: 2500
- Supply Type: Single, Dual
- Technology: BiFET
- Vcm – Common Mode Voltage: Negative Rail + 4 V to Positive Rail – 4 V
- Voltage Gain dB: 106.02 dB
- Width: 6.35 mm
- Unit Weight: 440,400 m
- آی سی TL081 یک آپ امپ ( تقویت کننده عملیاتی ) تکی با ورودی JFET و با نویز کم و پهنای باند 3 مگاهرتز می باشد.
