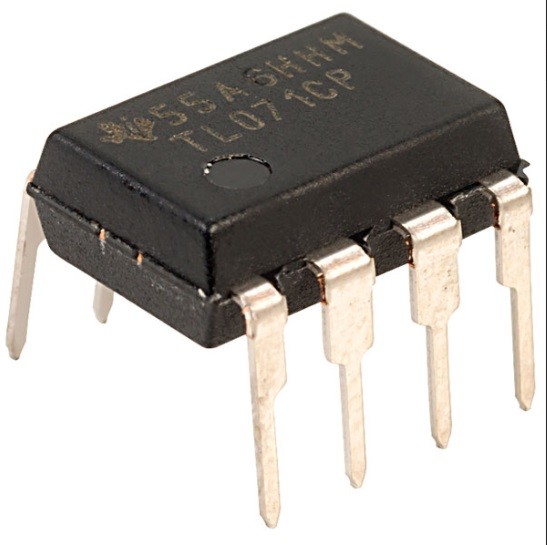

TL071CP – DIP

Name: TL071CP - DIP
SKU: 12365
Availability: InStock

ریال241.758

SINGLE,JFET LOW NOISE OPAMP

130 در انبار

شناسه محصول: 12365 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
Manufacturer: STMicroelectronics
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: PDIP-8
Supply Voltage – Max: 36 V
Output Current per Channel: 40 mA
Number of Channels: 1 Channel
GBP – Gain Bandwidth Product: 4 MHz
SR – Slew Rate: 16 V/us
CMRR – Common Mode Rejection Ratio: 70 dB
Ib – Input Bias Current: 200 pA
Vos – Input Offset Voltage: 10 mV
Supply Voltage – Min: 6 V
Operating Supply Current: 2.5 mA
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Shutdown: No Shutdown
Series: TL071
Packaging: Tube
Amplifier Type: Low Noise Amplifier
Brand: STMicroelectronics
en – Input Voltage Noise Density: 15 nV/sqrt Hz
Height: 3.3 mm
Length: 9.27 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 3 V
Operating Supply Voltage: 6 V to 36 V, +/- 3 V to +/- 18 V
Pd – Power Dissipation: 680 mW
Product: Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 70 dB
Factory Pack Quantity: 50
Supply Type: Single, Dual
Technology: BiFET
Voltage Gain dB: 106.02 dB
Width: 6.35 mm
Unit Weight: 1 g
آی سی TL071 یک آپ امپ ( تقویت کننده عملیاتی ) تکی با ورودی JFET و با نویز کم و پهنای باند 3 مگاهرتز می باشد.
