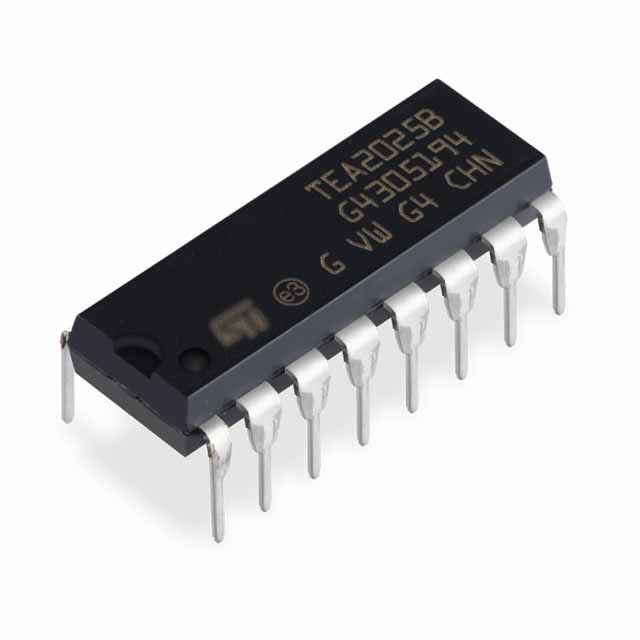

TEA2025B – DIP

Name: TEA2025B - DIP
SKU: 12447
Availability: InStock

ریال496.584

Dual Stereo Audio Amplifier 1.7W(آی سی آمپلی فایر)

173 در انبار

شناسه محصول: 12447 دسته: Audio Power Amplifier, آی سی ها

Product Category: Audio Amplifiers
- Manufacturer: STMicroelectronics
- RoHS: RoHS Compliant Details
- Product: Audio Amplifiers
- Class: Class-AB
- Output Power: 4.7 W
- Mounting Style: Through Hole
- Type: 1-Channel Mono or 2-Channel Stereo
- Package/Case: PDIP-16
- Audio – Load Impedance: 32 Ohm
- THD plus Noise: 0.5 %
- Supply Voltage – Max: 12 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 150 C
- Minimum Operating Temperature: 0 C
- Packaging: Tube
- Brand: STMicroelectronics
- Description/Function: Speaker
- Gain: 51 dB
- Height: 4.59 mm
- Input Type: Single
- Length: 20 mm
- Number of Channels: 2 Channel
- Operating Supply Current: 1.5 A
- Operating Supply Voltage: 5 V, 9 V
- Output Current: 1500 mA
- Output Signal Type: Differential, Single
- PSRR – Power Supply Rejection Ratio: 46 dB
- Series: TEA2025
- Factory Pack Quantity: 25
- Supply Type: Single
- Width: 7.1 mm
- Unit Weight: 1,628 g
- آی سی TEA2025B یک تقویت کننده صوتی استریو با توان 4.7 وات می باشد.
