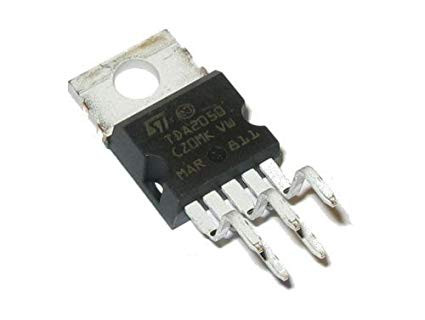

TDA2050

-Manufacturer:STMicroelectronics
-Product Category:Audio Amplifiers
-RoHS:Details
-Series:TDA2050
-Product:Audio Amplifiers
-Class:Class-AB
-Output Power:50 W
-Mounting Style:Through Hole
-Type:1-Channel Mono
-Package / Case:Pentawatt
-Audio – Load Impedance:8 Ohms
-THD plus Noise:0.03 %
-Minimum Operating Temperature:- 40 C
-Maximum Operating Temperature:+ 150 C
-Packaging:Tube
-Description/Function:Speaker
-Height:9.2 mm
-Input Type:Differential
-Length:10.4 mm
-Output Current:5000 mA
-Supply Type:Dual
-Width:4.8 mm
-Brand:STMicroelectronics
-Gain:80 dB
-Number of Channels:1 Channel
-Dual Supply Voltage:+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V
-Ib – Input Bias Current:500 nA
-Maximum Dual Supply Voltage:+/- 25 V
-Minimum Dual Supply Voltage:+/- 4.5 V
-Operating Supply Current:90 mA
-Operating Supply Voltage:25 V
-Output Signal Type:Single
-Pd – Power Dissipation:25000 mW
-Product Type:Audio Amplifiers
-PSRR – Power Supply Rejection Ratio:45 dB
-Factory Pack Quantity:50
-Subcategory:Audio ICs
-Vos – Input Offset Voltage:15 mV
-Unit Weight:4G

آی سی tda2050 های فای کلاس AB با توان ۳۵ وات در امپدانس 8 اهم
