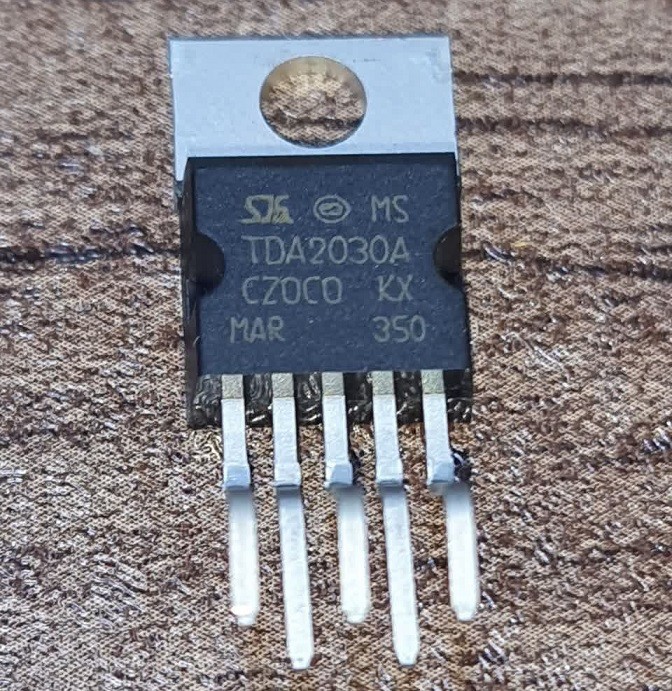

TDA2030A – DIP

Name: TDA2030A - DIP
SKU: 12444
Availability: InStock

ریال189.486

18W Hi-Fi Audio Power Amplifier(آی سی آمپلی فایر)

1042 در انبار

شناسه محصول: 12444 دسته: Audio Power Amplifier, آی سی ها

Product Category: Audio Amplifiers
- Manufacturer: STMicroelectronics
- RoHS: RoHS Compliant Details
- Product: Audio Amplifiers
- Class: Class-AB
- Output Power: 18 W
- Mounting Style: Through Hole
- Type: 1-Channel Mono
- Package/Case: Pentawatt
- Audio – Load Impedance: 8 Ohm
- THD plus Noise: 0.5 %
- Maximum Operating Temperature: + 150 C
- Minimum Operating Temperature: – 40 C
- Packaging: Tube
- Brand: STMicroelectronics
- Description/Function: Speaker
- Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
- Gain: 80 dB
- Height: 9.2 mm
- Ib – Input Bias Current: 2 uA
- Input Type: Differential
- Length: 10.4 mm
- Maximum Dual Supply Voltage: +/- 22 V
- Minimum Dual Supply Voltage: +/- 6 V
- Number of Channels: 1 Channel
- Operating Supply Current: 80 mA
- Operating Supply Voltage: 22 V
- Output Current: 3500 mA
- Output Signal Type: Single
- Pd – Power Dissipation: 20000 mW
- PSRR – Power Supply Rejection Ratio: 54 dB
- Series: TDA2030A
- Factory Pack Quantity: 50
- Supply Type: Dual
- Vos – Input Offset Voltage: 20 mV
- Width: 4.8 mm
- آی سی TDA2030 یک تقویت کننده صوتی مونو 18وات می باشد.
