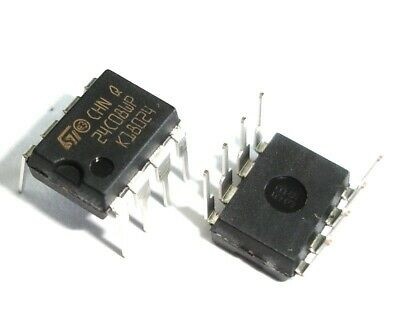

ST24C08WP – DIP

Name: ST24C08WP - DIP
SKU: 2388
Availability: InStock

ریال522.720

CMOS 8KBIT (1KB*8) S-EEPROM

213 در انبار

شناسه محصول: 2388 دسته: Serial&I2C EEPROM, آی سی ها

Product Category: EEPROM
- Manufacturer: ST
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: PDIP-8
- Memory Size: 8 kbit
- Interface Type: Serial, 2-Wire, I2C
- Organisation: 1 k x 8
- Data Retention: 100 Year
- Maximum Clock Frequency: 0.4 MHz
- Supply Current – Max: 2 mA
- Operating Supply Voltage: 1.8 V , 2.5 V , 3.3 V , 5 V
- Maximum Operating Temperature: + 85 C
- Series: CAT24C08
- Packaging: Tube
- Access Time: 900 ns
- Brand: ST
- Height: 3.3 mm
- Length: 9.27 mm
- Minimum Operating Temperature: – 40 C
- Operating Supply Current: 2 mA
- Factory Pack Quantity: 50
- Supply Voltage – Max: 5.5 V
- Supply Voltage – Min: 1.7 V
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 24C08 یک آی سی حافظه باظرفیت 8KB می باشد
