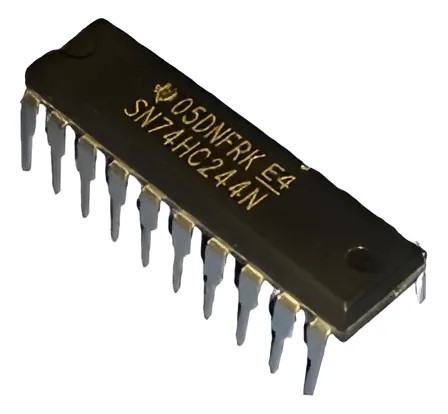

SN74HC244N – DIP

Name: SN74HC244N - DIP
SKU: 3041
Availability: InStock

ریال339.768

TTL 74244-Octal buffer/line driver; 3-state

198 در انبار

شناسه محصول: 3041 دسته: TTL Logic, آی سی ها

Product Category: Buffers & Line Drivers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Input Lines: 8 Input
- Number of Output Lines: 8 Output
- Polarity: Non-Inverting
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package/Case: PDIP-20
- Packaging: Tube
- Brand: Texas Instruments
- Function: Buffer/Line Driver
- Height: 4.57 mm
- High Level Output Current: – 7.8 mA
- Input Signal Type: Single-Ended
- Length: 24.33 mm
- Logic Family: HC
- Logic Type: CMOS
- Low Level Output Current: 7.8 mA
- Minimum Operating Temperature: – 40 C
- Number of Channels: 8
- Operating Supply Current: 80 uA
- Operating Supply Voltage: 5 V
- Operating Temperature Range: – 40 C to + 85 C
- Output Type: 3-State
- Propagation Delay Time: 165 ns at 2 V, 33 ns at 4.5 V, 28 ns at 6 V
- Quiescent Current: 8 uA
- Series: SN74HC244
- Factory Pack Quantity: 20
- Supply Current – Max: 8 uA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 2 g
- آی سی 74244 یک بافر و درایور خط 8 بیتی (کانال) است که خروجی 3 حالته دارد.
