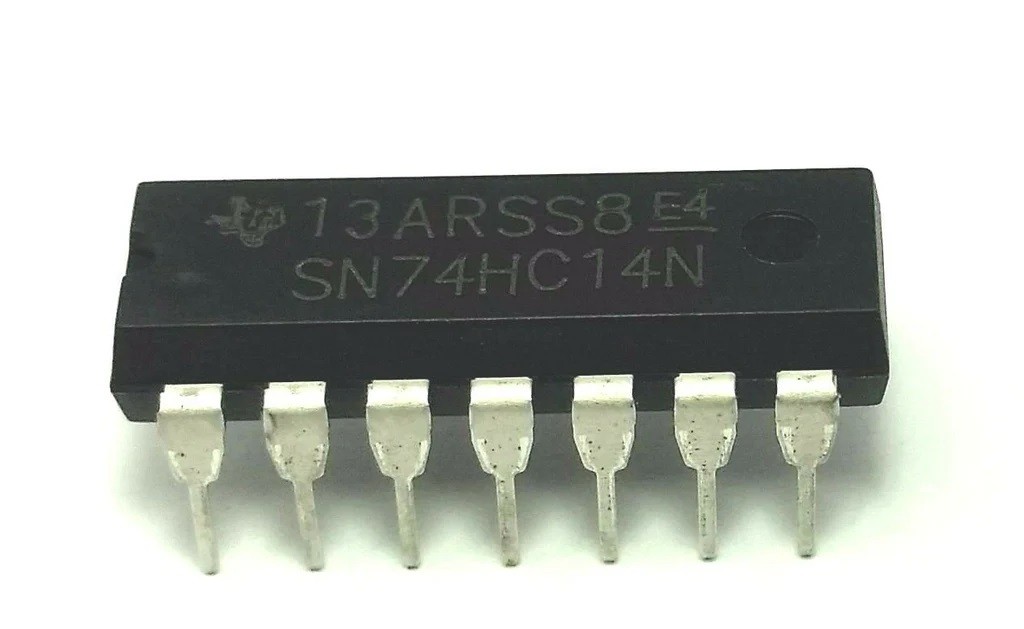

SN74HC14N – DIP

Name: SN74HC14N - DIP
SKU: 3027
Availability: InStock

ریال395.307

TTL 7414-HEX INVERTER WITH SCHMITT

258 در انبار

شناسه محصول: 3027 دسته: TTL Logic, آی سی ها

Product Category: Inverters
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Circuits: 6 Circuit
- Logic Family: HC
- Logic Type: CMOS
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Hex Schmitt Trigger
- High Level Output Current: – 4 mA
- Input Type: CMOS
- Low Level Output Current: 4 mA
- Minimum Operating Temperature: – 40 C
- Number of Output Lines: 6 Output
- Operating Supply Voltage: 5 V
- Operating Temperature Range: – 40 C to + 85 C
- Output Type: CMOS
- Propagation Delay Time: 31 ns
- Series: SN74HC14
- Factory Pack Quantity: 25
- Unit Weight: 1 g
- آی سی 7414شامل 6 عدد گیت NOT با ورودی اشمیت تریگر است.
