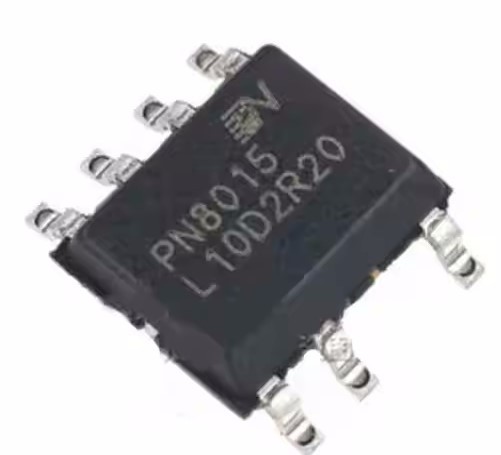

PN8015SSC – SMD

一、General Description

The PN8015 consists of an integrated Pulse Width Modulator (PWM) controller and power MOSFET， specifically designed forsmall power non-isolated switching power supply. Variable output voltage could be adjusted by FB resistors. PN8015 has internalhigh voltage start-up and self-supply circuit, and complete intelligent protections including Cycle-by-Cycle current limiting (OCP),Over Load Protection (OLP), Under Voltage Lockout (UVLO) and Over Temperature Protection (OTP). Excellent EMI performancecould be achieved with Pulse Frequency Modulation.

二、 Features

Internal 800V avalanche-rugged smart power VDMOSFET

Internal HV Start-up and Self-supply Circuit

Supporting Buck, Buck-Boost and Flyback topologies

Variable Output Voltage 3.3V~24V adjusted by FB resistors

Semi enclosed steady output current >200mA @230VAC

Frequency modulation for low EMI

Excellent constant voltage regulation and High efficiency

Excellent Protection Coverage:

      Over Load Protection（ OLP）

Over Temperature Protection（ OTP）

Under Voltage Lockout（ UVLO）
