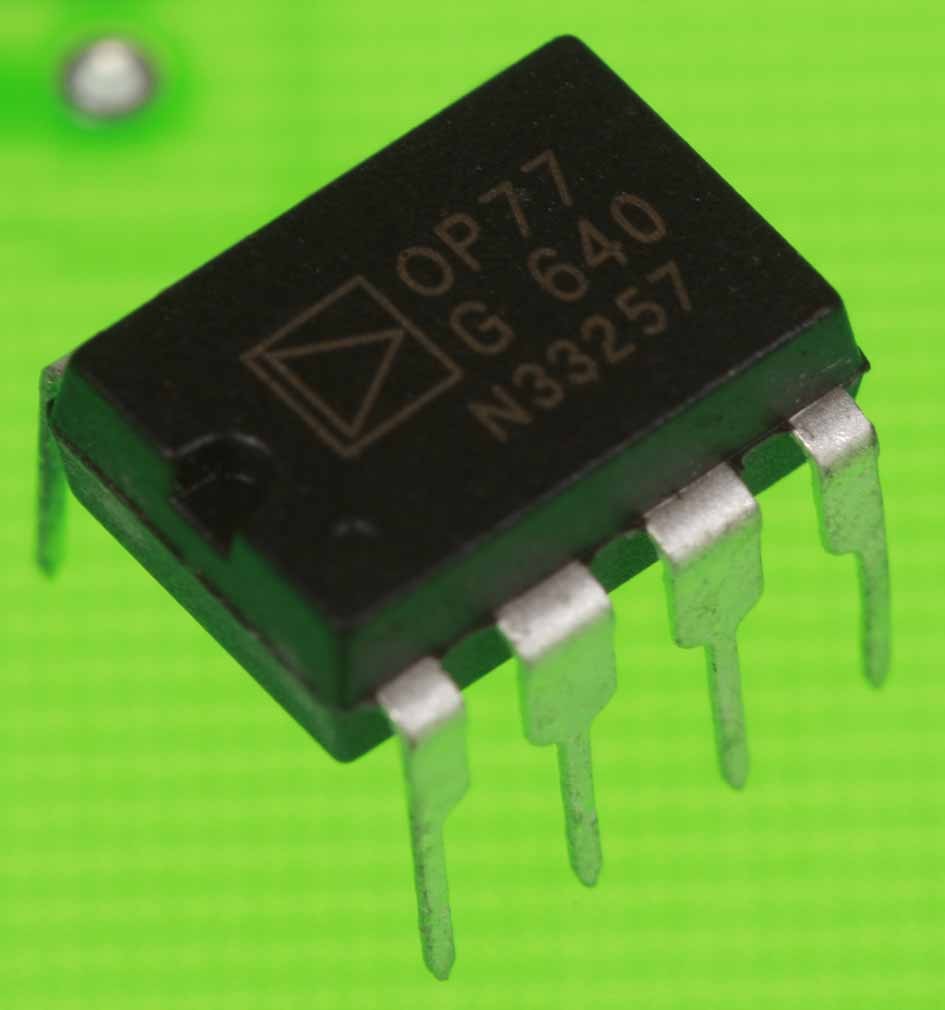

OP77GP – DIP

Name: OP77GP - DIP
SKU: 12360
Availability: InStock

ریال1.568.160

ULTRA PRECISION OPAMP

228 در انبار

شناسه محصول: 12360 دسته: Op Amp, آی سی ها

Product Category: Precision Amplifiers
- Manufacturer: Analog Devices Inc.
- RoHS: No
- Number of Channels: 1 Channel
- GBP – Gain Bandwidth Product: 600 kHz
- SR – Slew Rate: 0.3 V/us
- Ib – Input Bias Current: 2 nA
- Vos – Input Offset Voltage: 10 uV
- en – Input Voltage Noise Density: 10.3 nV/sqrt Hz at +/- 15 V
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 85 C
- Minimum Operating Temperature: – 25 C
- Shutdown: No Shutdown
- Mounting Style: Through Hole
- Package/Case: CDIP-8
- Packaging: Tube
- Brand: Analog Devices
- Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
- Gain V/V: 5000 V/mV
- Height: 3.56 mm (Max)
- Input Voltage Range – Max: 14 V
- Length: 10.29 mm (Max)
- Maximum Dual Supply Voltage: +/- 22 V
- Minimum Dual Supply Voltage: +/- 3 V
- Operating Supply Voltage: 3 V to 18 V
- Pd – Power Dissipation: 60 mW
- Product: Precision Amplifiers
- PSRR – Power Supply Rejection Ratio: 0.7 uV/V
- Series: OP77
- Factory Pack Quantity: 50
- Type: Operational
- Voltage Gain dB: 141.58 dB
- Width: 7.87 mm (Max)
- آی سی OP77 یک عدد آپ امپ تکی با آفست ولتاژی خیلی کم می باشد. به عبارتی نسل بعدی OP07 است.
