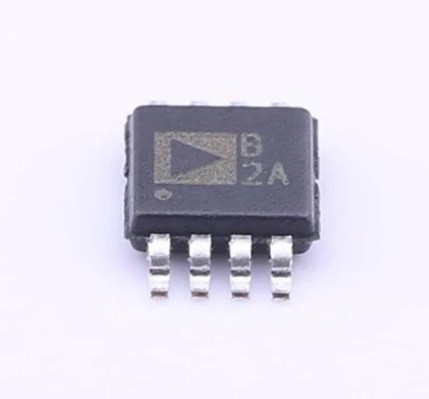

OP2177ARMZ – SMD
ریال1.045.440
Precision Amplifiers DUAL , LOW NOISE OP AMP
180 در انبار
- Manufacturer:Analog Devices Inc.
- Product Category:Precision Amplifiers
- Series:OP2177
- Number of Channels:2 Channel
- GBP – Gain Bandwidth Product:1.3 MHz
- SR – Slew Rate:700 mV/us
- CMRR – Common Mode Rejection Ratio:118 dB
- Output Current per Channel:10 mA
- Ib – Input Bias Current:2 nA
- Vos – Input Offset Voltage:25 uV
- en – Input Voltage Noise Density:7.9 nV/sqrt Hz
- Supply Voltage – Max:15 V, 15 V
- Supply Voltage – Min:2.5 V, 2.5 V
- Operating Supply Current:500 uA
- Minimum Operating Temperature:- 40 C
- Maximum Operating Temperature:+ 125 C
- Shutdown:No Shutdown
- Mounting Style:SMD/SMT
- Package/Case:MSOP-8
- Packaging:Reel
- Packaging:Cut Tape
- Packaging:MouseReel
- Brand:Analog Devices
- Dual Supply Voltage:2.5 V to 15 V
- Gain V/V:2000 V/mV
- Height:0.85 mm
- In – Input Noise Current Density:0.2 pA/sqrt Hz
- Input Voltage Range – Max:15 V
- Ios – Input Offset Current:1 nA
- Length:3 mm
- Maximum Dual Supply Voltage:15 V
- Minimum Dual Supply Voltage:2.5 V
- Operating Supply Voltage:2.5 V to 15 V
- Product:Precision Amplifiers
- Product Type:Precision Amplifiers
- PSRR – Power Supply Rejection Ratio:120 dB
- Factory Pack Quantity:3000
- Subcategory:Amplifier ICs
- Type:Precision
- Voltage Gain dB:126.02 dB
- Width:3 mm
- Unit Weight:140 mg
| وزن | 1 گرم |
|---|---|
| Package | MSOP-8 |
