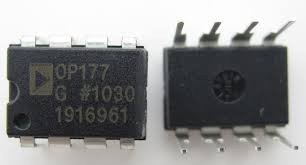

OP177GP – DIP

Name: OP177GP - DIP
SKU: 12355
Availability: InStock

ریال1.633.500

ULTRA PRECISION OPAMP

156 در انبار

شناسه محصول: 12355 دسته: Op Amp, آی سی ها

Product Category: Precision Amplifiers
- Manufacturer: Analog Devices Inc.
- RoHS: RoHS Compliant Details
- Number of Channels: 1 Channel
- GBP – Gain Bandwidth Product: 600 kHz
- SR – Slew Rate: 0.3 V/us
- CMRR – Common Mode Rejection Ratio: 140 dB
- Ib – Input Bias Current: 2.8 nA
- Vos – Input Offset Voltage: 20 uV
- Supply Voltage – Max: 22 V
- Operating Supply Current: 1.6 mA
- Maximum Operating Temperature: + 85 C
- Minimum Operating Temperature: – 40 C
- Shutdown: No Shutdown
- Mounting Style: Through Hole
- Package/Case: PDIP-8
- Packaging: Tube
- Brand: Analog Devices
- Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
- Height: 3.43 mm
- Input Voltage Range – Max: 14 V
- Length: 9.27 mm
- Maximum Dual Supply Voltage: +/- 18 V
- Maximum Input Resistance: 45 MOhms
- Minimum Dual Supply Voltage: +/- 3 V
- Pd – Power Dissipation: 500 mW
- Product: Precision Amplifiers
- PSRR – Power Supply Rejection Ratio: 120 dB
- Series: OP177
- Factory Pack Quantity: 50
- Type: Ultraprecision
- Voltage Gain dB: 135.56 dB
- Width: 7.24 mm
- Unit Weight: 1 g
- آی سی OP177 یک آپ امپ شامل یک تقویت کننده دقیق با ولتاژ آفست ورودی بسیار پایین 20µV می باشد.
