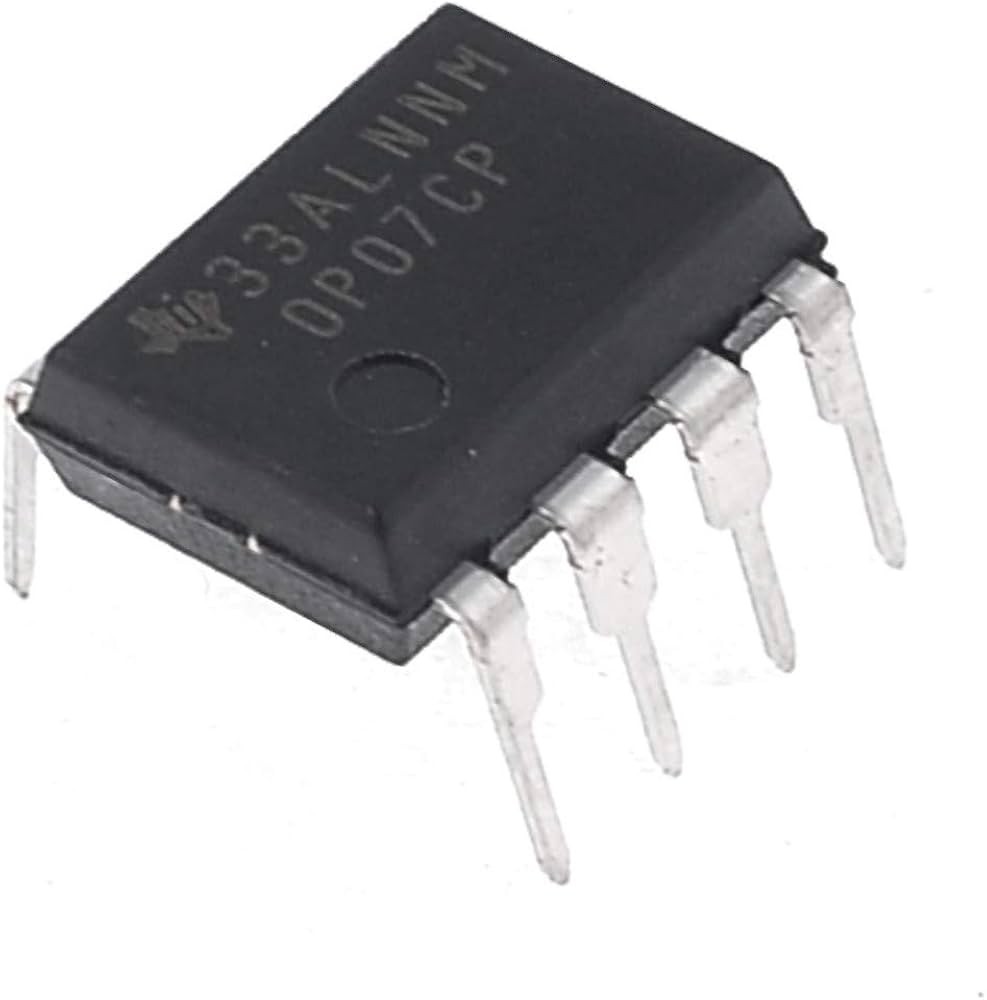

OP07CP – DIP

Name: OP07CP - DIP
SKU: 12352
Availability: InStock

ریال372.438

ULTRALOW OFFSET VOLTAGE OPAMP

484 در انبار

شناسه محصول: 12352 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Maxim Integrated
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: PDIP-Narrow-8
- Number of Channels: 1 Channel
- GBP – Gain Bandwidth Product: 600 kHz
- SR – Slew Rate: 0.3 V/us
- CMRR – Common Mode Rejection Ratio: 100 dB
- Ib – Input Bias Current: 0.007 uA
- Vos – Input Offset Voltage: 15 uV
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: OP07
- Amplifier Type: Low Offset Voltage Amplifier
- Brand: Maxim Integrated
- Dual Supply Voltage: +/- 5 V or +/- 9 V or +/- 12 V or +/- 15 V
- en – Input Voltage Noise Density: 10.5 nV/sqrt Hz
- Height: 4.45 mm (Max)
- In – Input Noise Current Density: 0.35 pA/sqrt Hz
- Length: 9.91 mm (Max)
- Maximum Dual Supply Voltage: +/- 18 V
- Minimum Dual Supply Voltage: +/- 3 V
- Pd – Power Dissipation: 500 mW
- Product: Operational Amplifiers
- PSRR – Power Supply Rejection Ratio: 103.1 dB
- Supply Type: Dual
- Voltage Gain dB: 112.04 dB
- Width: 7.87 mm (Max)
- این آی سی یک نوع تقویت کننده عملیاتی میباشد آیسی OP07 دارای دو آپ امپ بسیار دقیق در حد نانو ومیکرو ولت را شناسایی می کند .
