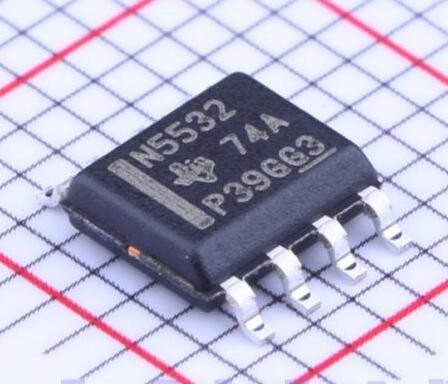

NE5532DR – SMD

Name: NE5532DR - SMD
SKU: 14075
Availability: InStock

ریال313.632

DUAL,LOW NOISE OPAMP

817 در انبار

شناسه محصول: 14075 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: SO-8
- Supply Voltage – Max: 30 V
- Output Current per Channel: 38 mA
- Number of Channels: 2 Channel
- GBP – Gain Bandwidth Product: 10 MHz
- SR – Slew Rate: 9 V/us
- CMRR – Common Mode Rejection Ratio: 70 dB
- Ib – Input Bias Current: 800 nA
- Vos – Input Offset Voltage: 4 mV
- Supply Voltage – Min: 10 V
- Operating Supply Current: 16 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: NE5532
- Packaging: Tube
- Amplifier Type: Low Noise Amplifier
- Brand: Texas Instruments
- Dual Supply Voltage: +/- 9 V, +/- 12 V
- en – Input Voltage Noise Density: 8 nV/sqrt Hz at +/- 15 V
- Height: 4.57 mm
- In – Input Noise Current Density: 2.7 pA/sqrt Hz
- Length: 9.81 mm
- Maximum Dual Supply Voltage: +/- 15 V
- Minimum Dual Supply Voltage: +/- 5 V
- Operating Supply Voltage: 10 V to 30 V, +/- 5 V to +/- 15 V
- Product: Operational Amplifiers
- Factory Pack Quantity: 50
- Supply Type: Single, Dual
- Technology: Bipolar
- Voltage Gain dB: 100 dB
- Width: 6.35 mm
- Unit Weight: 440 mg
- آی سی NE5532یک آپ امپ شامل دو تقویت کننده کم مصرف می باشد.از ویژگیهای این تراشه می توان به رنج وسیع ولتاژ تغذیه و مصرف کم تراشه اشاره کرد.
