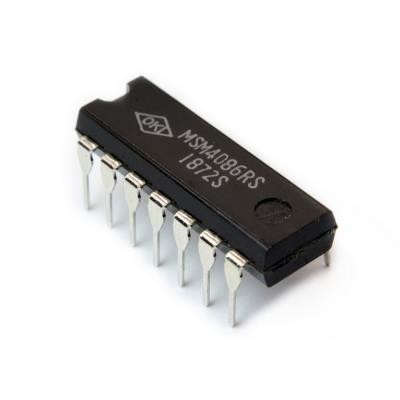

MSM4086RS – DIP

Name: MSM4086RS - DIP
SKU: 3004
Availability: InStock

ریال65.340

4-Wide 2-Input AND-OR Gate

120 در انبار

شناسه محصول: 3004 دسته: CMOS Logic, آی سی ها

Product Category: Logic Gates
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Logic Function: MUX Gates
- Logic Family: CD4000
- Number of Gates: 4 Gate
- Number of Input Lines: 8 Input
- Number of Output Lines: 1 Output
- High Level Output Current: – 1.5 mA
- Low Level Output Current: 1.5 mA
- Propagation Delay Time: 250 ns
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: AND/OR Invert Gate
- Height: 4.57 mm
- Input Type: CMOS
- Length: 19.3 mm
- Logic Type: 2-Input AND-OR-INVERT
- Minimum Operating Temperature: – 55 C
- Number of Bits: 4 bit
- Operating Supply Current: 60 uA
- Operating Supply Voltage: 10 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Type: CMOS
- Quiescent Current: 40 nA
- Series: CD4086B , HEF4086B , HCF4086 , MSM4086RS
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4086BE شامل 4 گیت AND دو ورودی و یک گیت NOT تلفیقی با یک گیت OR می باشد.
