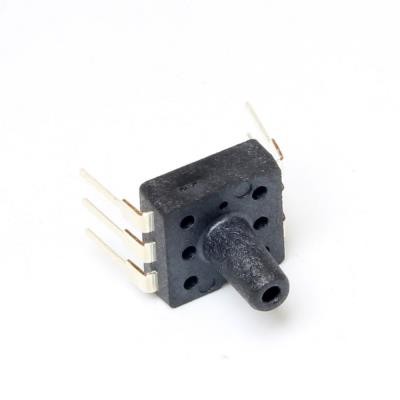

MPS20N0040D

Name: MPS20N0040D
SKU: 14387
Availability: InStock

ریال629.200

سنسور فشار آنالوگ

157 در انبار

شناسه محصول: 14387 دسته: Others Sensor, SENSORS/سنسورها

Specification

A wide temperature range: -40 ~ 125 °C
Table pressure type
Output signal: analog-type
Protection Level: 3X

Resistance value: 5 kOhm
Own weight: 0.6g
Linearity: + / -0.3%
Hysteresis: + / -0.2%

DIP/SMD package
Easy embedded OEM package

Applications

Instrumentation
level measurement
altimeter
medical applications
Automotive electronics
Consumer Electronics
gas liquid pressure
Industrial process control
Absolute pressure differential pressure system applications

Parameter		Min	Typical values	Max	Unit
Range		0	–	40	Kpa
Operating Temperature		-40	–	125	°C
Bridge resistance		4.5	5	5.5	kΩ
Zero output		-20	0	+20	mV
The full-scale output		30	50	70	mV
Linearity		–	0.2	0.3	%FS
Temperature Coefficient	Resistance	2000	2200	2500	ppm/°C
	Sensitivity	-2000	-2200	-2500	ppm/°C
	Zero drift	-60	–	60	μV/°C
Pressure hysteresis		–	–	0.2	%FS
Repeatability		–	–	0.2	%FS
Temperature hysteresis		–	–	0.2	%FS
Work Voltage		–	5	10	V
Storage temperature		-40	–	150	°C
Pressure overload				3X
