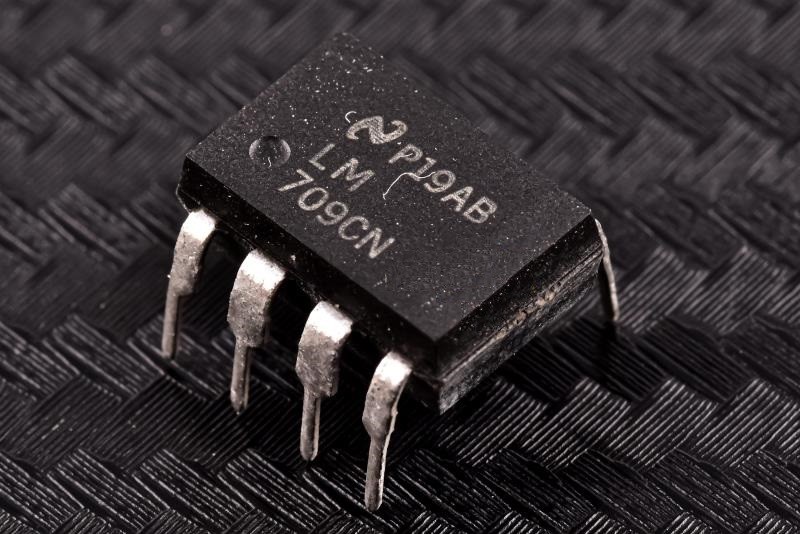

LM709CN – DIP8

General Description

The LM709 series is a monolithic operational amplifier in- tended for general-purpose applications. Operation is com- pletely specified over the range of voltages commonly used for these devices. The design, in addition to providing high gain, minimizes both offset voltage and bias currents. Fur- ther, the class-B output stage gives a large output capability with minimum power drain. External components are used to frequency compensate the amplifier. Although the unity-gain compensation network specified will make the amplifier unconditionally stable in all feedback configurations, compensation can be tailored to optimize high-frequency performance for any gain setting.The LM709C is the commercial-industrial version of the LM709. It is identical to the LM709 except that it is specified for operation from 0ß Ctoa 70ß

C.
