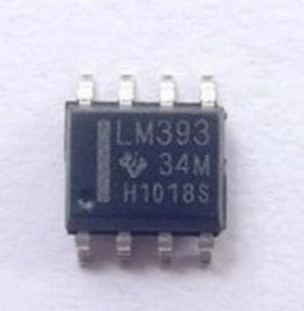

LM393D – SMD

Name: LM393D - SMD
SKU: 13129
Availability: InStock

ریال37.243

DUAL COMPARATOR,VCC:36V

2315 در انبار

شناسه محصول: 13129 دسته: Analog Comparator, آی سی ها

Product Category: Analog Comparators
- Manufacturer: ON Semiconductor
- RoHS: No
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Comparator Type: General Purpose
- Number of Channels: 2 Channel
- Output Type: Rail-to-Rail
- Output Current per Channel: 16 mA
- Ib – Input Bias Current: 50 nA
- Vos – Input Offset Voltage: 5 mV
- Supply Voltage – Max: 36 V
- Supply Voltage – Min: 2 V
- Operating Supply Current: 1 mA
- Response Time: 1.5 us
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Packaging: Tube
- Brand: ON Semiconductor
- Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
- GBP – Gain Bandwidth Product: –
- Height: 1.5 mm (Max)
- Length: 5 mm (Max)
- Maximum Dual Supply Voltage: +/- 18 V
- Minimum Dual Supply Voltage: 1 V
- Operating Supply Voltage: 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
- Pd – Power Dissipation: 570 mW
- Product: Analog Comparators
- Reference Voltage: Yes
- Shutdown: No Shutdown
- Factory Pack Quantity: 2500
- Supply Type: Single, Dual
- Technology: Bipolar
- Type: Low Offset Comparator
- Vcm – Common Mode Voltage: Negative Rail to Positive Rail – 1.5 V
- Voltage Gain dB: 106.02 dB
- Width: 4 mm (Max)
- Unit Weight: 540 mg
- آی سی LM393 یک مقایسه گر آنالوگ 2 کانال می باشد.

وزن	2 گرم
Package	DIP-14
