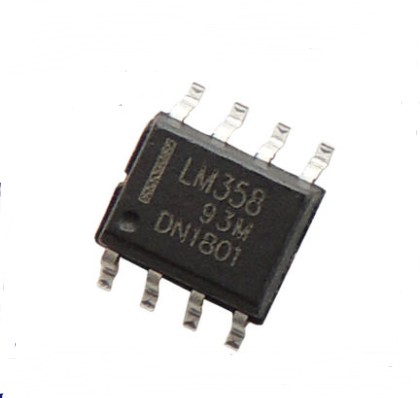

LM358D – SMD

Name: LM358D - SMD
SKU: 12340
Availability: InStock

ریال44.000

DUAL,LOW POWER OPAMP

2341 در انبار

شناسه محصول: 12340 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: SO-8
- Supply Voltage – Max: 32 V
- Output Current per Channel: 30 mA
- Number of Channels: 2 Channel
- GBP – Gain Bandwidth Product: 700 kHz
- SR – Slew Rate: 0.3 V/us
- CMRR – Common Mode Rejection Ratio: 65 dB
- Ib – Input Bias Current: 250 nA
- Vos – Input Offset Voltage: 7 mV
- Supply Voltage – Min: 3 V
- Operating Supply Current: 1.2 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: LM358
- Packaging: Tube
- Amplifier Type: High Gain Amplifier
- Brand: Texas Instruments
- Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
- en – Input Voltage Noise Density: 40 nV/sqrt Hz
- Height: 4.57 mm
- Length: 9.81 mm
- Maximum Dual Supply Voltage: +/- 16 V
- Minimum Dual Supply Voltage: +/- 1.5 V
- Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
- Product: Operational Amplifiers
- Factory Pack Quantity: 50
- Supply Type: Single, Dual
- Technology: Bipolar
- Vcm – Common Mode Voltage: Negative Rail to Positive Rail – 1.5 V
- Voltage Gain dB: 100 dB
- Width: 6.35 mm
- Unit Weight: 440 mg
- آی سی LM358 یک آپ امپ شامل دو تقویت کننده کم مصرف می باشد.از ویژگیهای این تراشه می توان به رنج وسیع ولتاژ تغذیه و مصرف کم تراشه اشاره کرد.
