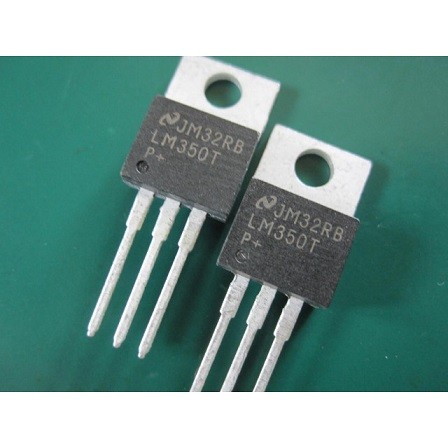

LM350T

Name: LM350T
SKU: 2315
Availability: InStock

ریال789.360

POSITIVE-ADJ 3A 1.2V..33V قطعه اورجینال

201 در انبار

شناسه محصول: 2315 دسته: Linear Regulator, آی سی ها

Product Category: Linear Voltage Regulators
- Manufacturer: Fairchild Semiconductor
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Output Voltage: 1.2 V to 33 V
- Output Current: 3 A
- Output Type: Adjustable
- Input Voltage MAX: 35 V
- Maximum Operating Temperature: + 125 C
- Load Regulation: 0.5 %
- Line Regulation: 0.03 % / V
- Series: LM350
- Brand: Fairchild Semiconductor
- Height: 9.4 mm (Max)
- Input Voltage MIN: 4.2 V
- Length: 10.67 mm (Max)
- Minimum Operating Temperature: 0 C
- Number of Outputs: 1
- Packaging: Bulk
- Pd – Power Dissipation: 20 W
- Polarity: Positive
- PSRR / Ripple Rejection – Typ: 65 dB
- Factory Pack Quantity: 1000
- Width: 4.83 mm (Max)
- Unit Weight: 1,214 g
- این قطعه یک نوع آی سی رگولاتور با خروجی قابل تنظیم و دارای خروجی 3A با رنج ولتاژ 1.2V تا 33V میباشد .
