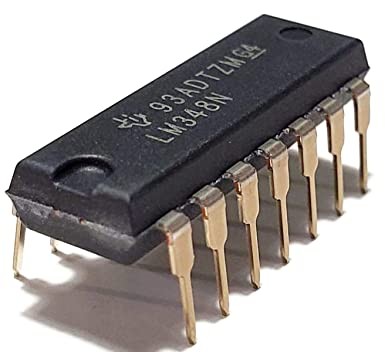

LM348N – DIP

Name: LM348N - DIP
SKU: 12338
Availability: InStock

ریال352.836

QUAD,LOW POWER OPAMP

110 در انبار

شناسه محصول: 12338 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Fairchild Semiconductor
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: DIP-14
- Number of Channels: 4 Channel
- GBP – Gain Bandwidth Product: 1 MHz
- SR – Slew Rate: 0.5 V/us
- CMRR – Common Mode Rejection Ratio: 70 dB
- Ib – Input Bias Current: 200 nA
- Vos – Input Offset Voltage: 6 mV
- Operating Supply Current: 4.5 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Packaging: Tube
- Amplifier Type: High Gain Amplifier
- Brand: Fairchild Semiconductor
- Height: 3.56 mm (Max)
- Length: 19.56 mm (Max)
- Maximum Dual Supply Voltage: +/- 18 V
- Product: Operational Amplifiers
- PSRR – Power Supply Rejection Ratio: 77 dB
- Factory Pack Quantity: 1500
- Supply Type: Dual
- Technology: Bipolar
- Voltage Gain dB: 104.08 dB
- Width: 6.6 mm (Max)
- Unit Weight: 1.620 g
- آی سی LM348N یک آپ امپ شامل چهار تقویت کننده عملیاتی کم مصرف می باشد.
