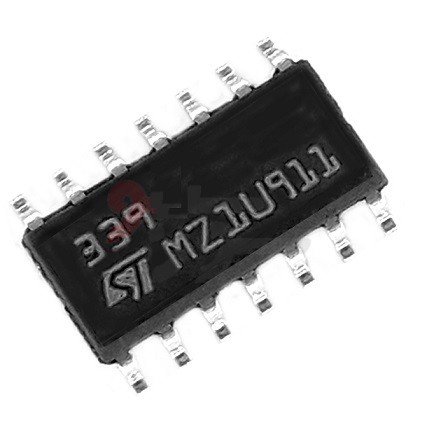

LM339D – SMD

Name: LM339D - SMD
SKU: 13126
Availability: InStock

ریال62.726

QUAD COMPARATOR,VCC:36V

4579 در انبار

شناسه محصول: 13126 دسته: Analog Comparator, آی سی ها

Product Category: Analog Comparators
- Manufacturer: ON Semiconductor
- RoHS: No
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Comparator Type: Differential
- Number of Channels: 4 Channel
- Output Type: Rail-to-Rail
- Output Current per Channel: 16 mA
- Ib – Input Bias Current: 50 nA
- Vos – Input Offset Voltage: 5 mV
- Supply Voltage – Max: 36 V
- Supply Voltage – Min: 3 V
- Operating Supply Current: 2 mA
- Response Time: 1.3 us
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Packaging: Tube
- Brand: ON Semiconductor
- Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
- GBP – Gain Bandwidth Product: –
- Height: 1.5 mm (Max)
- Length: 8.75 mm (Max)
- Maximum Dual Supply Voltage: +/- 18 V
- Minimum Dual Supply Voltage: 2.5 V
- Operating Supply Voltage: 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
- Pd – Power Dissipation: 1000 mW
- Product: Analog Comparators
- Reference Voltage: Yes
- Shutdown: No Shutdown
- Factory Pack Quantity: 55
- Supply Type: Single, Dual
- Technology: Bipolar
- Type: Comparator
- Vcm – Common Mode Voltage: Negative Rail to Positive Rail – 1.5 V
- Voltage Gain dB: 106.02 dB
- Width: 4 mm (Max)
- Unit Weight: 338 mg
- آی سی LM339 یک مقایسه گر آنالوگ 4 کانال می باشد.
