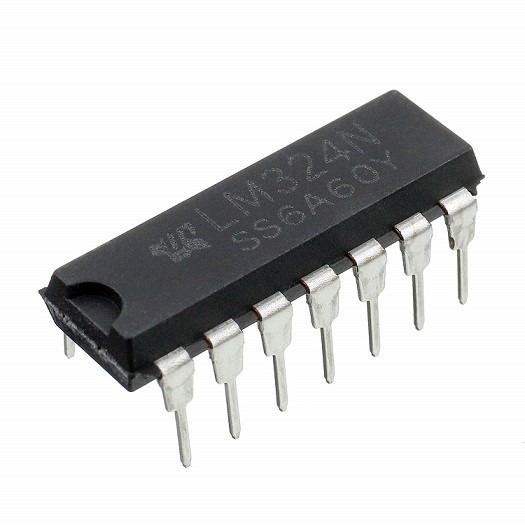

LM324N – DIP معمولی

Name: LM324N - DIP معمولی
SKU: 12335
Availability: InStock

ریال60.500

QUAD,LOW POWER OPAMP

1579 در انبار

شناسه محصول: 12335 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Fairchild Semiconductor
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: DIP-14
- Supply Voltage – Max: 32 V
- Output Current per Channel: 40 mA
- Number of Channels: 4 Channel
- CMRR – Common Mode Rejection Ratio: 65 dB
- Ib – Input Bias Current: 250 nA
- Vos – Input Offset Voltage: 7 mV
- Supply Voltage – Min: 3 V
- Operating Supply Current: 1.2 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: LM324
- Packaging: Bulk
- Amplifier Type: High Gain Amplifier
- Brand: Fairchild Semiconductor
- Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
- Height: 3.56 mm (Max)
- Length: 19.56 mm (Max)
- Maximum Dual Supply Voltage: +/- 16 V
- Minimum Dual Supply Voltage: +/- 1.5 V
- Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
- Pd – Power Dissipation: 1310 mW
- Product: Operational Amplifiers
- PSRR – Power Supply Rejection Ratio: 65 dB
- Factory Pack Quantity: 25
- Supply Type: Single, Dual
- Technology: Bipolar
- Voltage Gain dB: 100 dB
- Width: 6.6 mm (Max)
- Unit Weight: 1.620 g
- آی سی LM324N یک آپ امپ شامل چهار تقویت کننده عملیاتی کم مصرف می باشد.
