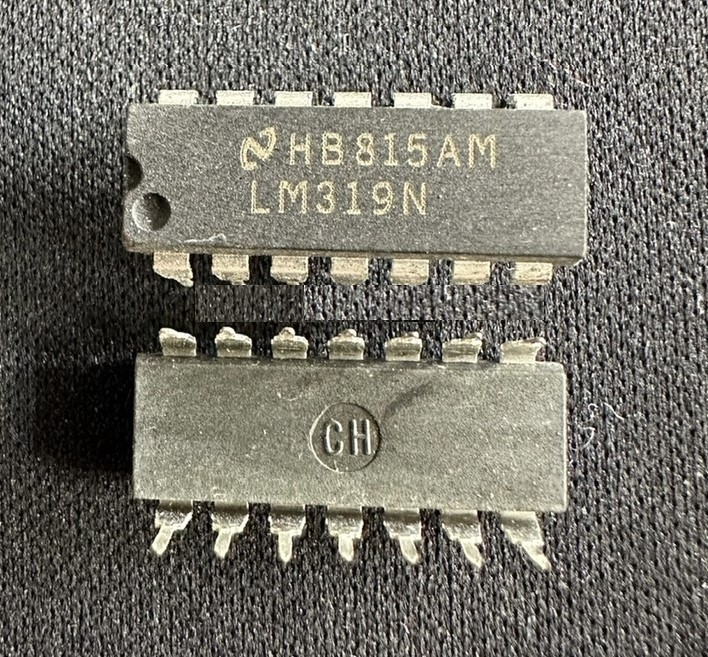

LM319N – DIP

Name: LM319N - DIP
SKU: 13125
Availability: InStock

ریال1.210.000

Dual comparator=KA319

166 در انبار

شناسه محصول: 13125 دسته: Analog Comparator, آی سی ها

Product Category: Analog Comparators
- Manufacturer:National & NXP
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: DIP-14
- Number of Channels: 2 Channel
- Output Type: Open Collector
- Output Current per Channel: 25 mA
- Ib – Input Bias Current: 1 uA
- Vos – Input Offset Voltage: 8 mV
- Supply Voltage – Max: 36 V
- Supply Voltage – Min: +/- 15 V
- Operating Supply Current: 12.5 mA
- Response Time: 80 ns
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Packaging: Tube
- Brand: Fairchild Semiconductor
- Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
- GBP – Gain Bandwidth Product: –
- Height: 3.56 mm (Max)
- Ios – Input Offset Current: 200 nA
- Length: 19.56 mm (Max)
- Maximum Dual Supply Voltage: +/- 15 V
- Minimum Dual Supply Voltage: +/- 2.5 V
- Operating Supply Voltage: 36 V
- Pd – Power Dissipation: 500 mW
- Product: Analog Comparators
- Reference Voltage: No
- Series: LM319
- Shutdown: No Shutdown
- Factory Pack Quantity: 1500
- Supply Type: Single, Dual
- Technology: Bipolar
- Type: High Speed Comparator
- Vcm – Common Mode Voltage: Negative Rail 1 V to Positive Rail 3 V
- Voltage Gain dB: 92.04 dB
- Width: 6.6 mm (Max)
- Unit Weight: 1,620 g
- آی سی LM319 یک مقایسه گر آنالوگ 2 کانال می باشد.
