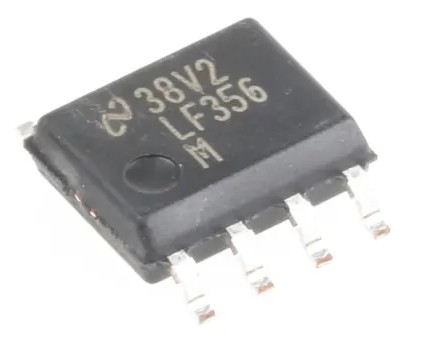

LF356M – SMD

Name: LF356M - SMD
SKU: 12320
Availability: InStock

ریال627.264

VOLTAGE FEEDBACK OPAMP

391 در انبار

شناسه محصول: 12320 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: STMicroelectronics
- RoHS: No
- Mounting Style: Through Hole
- Package/Case: SO-8
- Number of Channels: 1 Channel
- GBP – Gain Bandwidth Product: 5 MHz
- SR – Slew Rate: 12 V/us
- CMRR – Common Mode Rejection Ratio: 80 dB
- Ib – Input Bias Current: 200 pA
- Vos – Input Offset Voltage: 10 mV
- Operating Supply Current: 10 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: LF356
- Amplifier Type: Wideband Amplifier
- Brand: STMicroelectronics
- en – Input Voltage Noise Density: 15 nV/sqrt Hz
- In – Input Noise Current Density: 0.01 pA/sqrt Hz
- Maximum Dual Supply Voltage: +/- 22 V
- Operating Supply Voltage: +/- 22 V
- Pd – Power Dissipation: 570 mW
- Product: Operational Amplifiers
- Factory Pack Quantity: 50
- Supply Type: Dual
- Technology: BiFET
- Voltage Gain dB: 106.02 dB
- Unit Weight: 0.5 g
- آی سی LF356 یک تقویت کننده عملیاتی ( آپ امپ ) نوع J-FET با 1 عدد آپ امپ می باشد.
