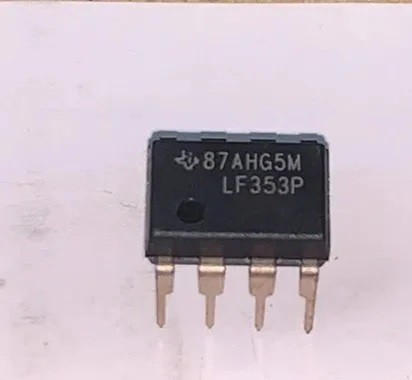

LF353P – DIP

Name: LF353P - DIP
SKU: 12318
Availability: InStock

ریال287.496

WIDE BANDWIDTH DUAL J-FET OP-SMD

305 در انبار

شناسه محصول: 12318 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: PDIP-8
- Supply Voltage – Max: 36 V
- Number of Channels: 2 Channel
- GBP – Gain Bandwidth Product: 3 MHz
- SR – Slew Rate: 13 V/us
- CMRR – Common Mode Rejection Ratio: 70 dB
- Ib – Input Bias Current: 200 pA
- Vos – Input Offset Voltage: 10 mV
- Supply Voltage – Min: 7 V
- Operating Supply Current: 6.5 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: LF353
- Packaging: Tube
- Amplifier Type: Wideband Amplifier
- Brand: Texas Instruments
- Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
- en – Input Voltage Noise Density: 18 nV/sqrt Hz
- Height: 4.57 mm
- In – Input Noise Current Density: 0.01 pA/sqrt Hz
- Length: 9.81 mm
- Maximum Dual Supply Voltage: +/- 18 V
- Minimum Dual Supply Voltage: +/- 3.5 V
- Operating Supply Voltage: +/- 3.5 V to +/- 18 V
- Pd – Power Dissipation: 500 mW
- Product: Operational Amplifiers
- Factory Pack Quantity: 50
- Supply Type: Dual
- Technology: BiFET
- Vcm – Common Mode Voltage: Negative Rail + 4 V to Positive Rail – 4 V
- Voltage Gain dB: 100 dB
- Width: 6.35 mm
- Unit Weight: 440 mg
- آی سی LF353 یک تقویت کننده عملیاتی ( آپ امپ ) نوع J-FET با 2 عدد آپ امپ می باشد.
