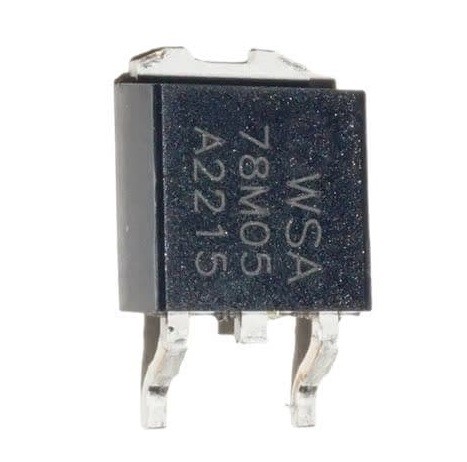

L78M05CDT-SMD

Name: L78M05CDT-SMD
SKU: 2249
Availability: InStock

ریال62.700

رگولاتور7805-SMD POSITIVE-FIXED OUTPUT: 5V,0.5A

3831 در انبار

شناسه محصول: 2249 دسته: Linear Regulator, آی سی ها

Product Category: Linear Voltage Regulators
- Manufacturer: STMicroelectronics
- RoHS: RoHS Compliant Details
- Mounting Style: SMD/SMT
- Package/Case: TO-252
- Output Voltage: 5 V
- Output Current: 500 mA
- Output Type: Fixed
- Input Voltage MAX: 35 V
- Maximum Operating Temperature: + 150 C
- Load Regulation: 100 mV
- Line Regulation: 100 mV
- Series: L78M05C
- Brand: STMicroelectronics
- Height: 2.4 mm (Max)
- Input Voltage MIN: 7 V
- Length: 6.6 mm (Max)
- Minimum Operating Temperature: 0 C
- Number of Outputs: 1
- Packaging: Reel
- Polarity: Positive
- PSRR / Ripple Rejection – Typ: 62 dB
- Factory Pack Quantity: 2500
- Width: 6.2 mm (Max)
- Unit Weight: 1.800 g
- آی سی رگولاتور تثبیت کننده 5 ولت SMD
