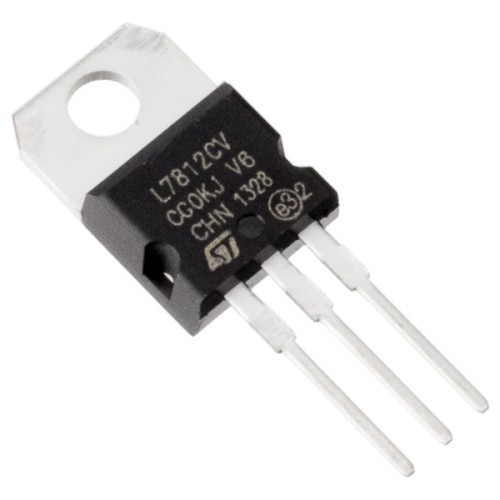

L7812CV اصلی

Name: L7812CV اصلی
SKU: 12279
Availability: InStock

ریال151.800

رگولاتور L7812CVrnPOSITIVE-FIXED OUTPUT: 12V,1.5A

869 در انبار

شناسه محصول: 12279 دسته: Linear Regulator, آی سی ها

Product Category: Linear Voltage Regulators
- Manufacturer: STMicroelectronics
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: TO-220
- Output Voltage: 12 V
- Output Current: 1.5 A
- Output Type: Fixed
- Input Voltage MAX: 35 V
- Maximum Operating Temperature: + 125 C
- Load Regulation: 240 mV
- Line Regulation: 240 mV
- Series: L7812
- Brand: STMicroelectronics
- Height: 9.15 mm (Max)
- Input Voltage MIN: 14 V
- Length: 10.4 mm (Max)
- Minimum Operating Temperature: 0 C
- Number of Outputs: 1
- Packaging: Tube
- Polarity: Positive
- PSRR / Ripple Rejection – Typ: 55 dB
- Factory Pack Quantity: 50
- Width: 4.6 mm (Max)
- Unit Weight: 2,300 g
- آی سی رگولاتور تثبیت کننده 12 ولت
