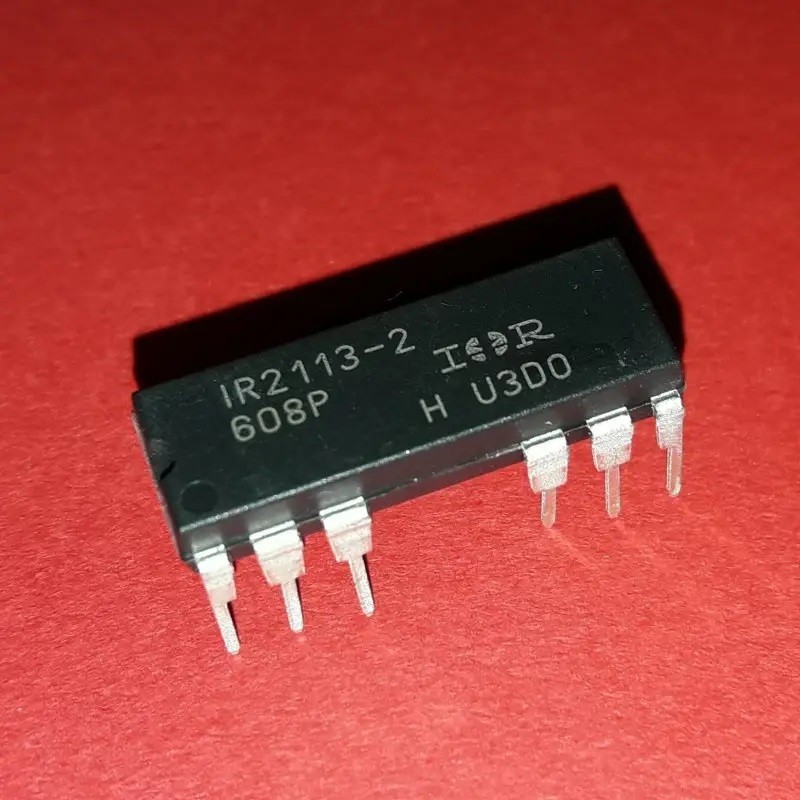

IR2113-2 – DIP

Name: IR2113-2 - DIP
SKU: 12504
Availability: InStock

ریال1.568.160

HIGH/LOW SIDE MOSFET DRIVER

168 در انبار

شناسه محصول: 12504 دسته: Mosfet & IGBT Driver, آی سی ها

Product Category: Gate Drivers
- Manufacturer: Infineon
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Product: Half-Bridge Drivers
- Number of Drivers: 2 Driver
- Output Current: 2.5 A
- Configuration: Non-Inverting
- Rise Time: 35 ns
- Fall Time: 25 ns
- Supply Voltage – Max: 20 V
- Supply Voltage – Min: 10 V
- Operating Supply Current: 340 uA
- Maximum Operating Temperature: + 125 C
- Type: High and Low Side
- Packaging: Tube
- Brand: Infineon Technologies
- Features: Independent
- Height: 5.33 mm (Max)
- Length: 20.19 mm (Max)
- Logic Type: CMOS, LSTTL
- Maximum Turn-Off Delay Time: 94 ns
- Maximum Turn-On Delay Time: 120 ns
- Minimum Operating Temperature: – 40 C
- Number of Outputs: 2
- Pd – Power Dissipation: 1.6 W
- Propagation Delay – Max: 150 ns
- Factory Pack Quantity: 25
- Width: 7.11 mm (Max)
- Unit Weight: 1,620 g
- آی سی IR2113 یک درایور ماسفت قدرت و IGBT برای دو ساید بالا و پایین یک Leg با تحمل ولتاژ 600 ولت می باشد.
