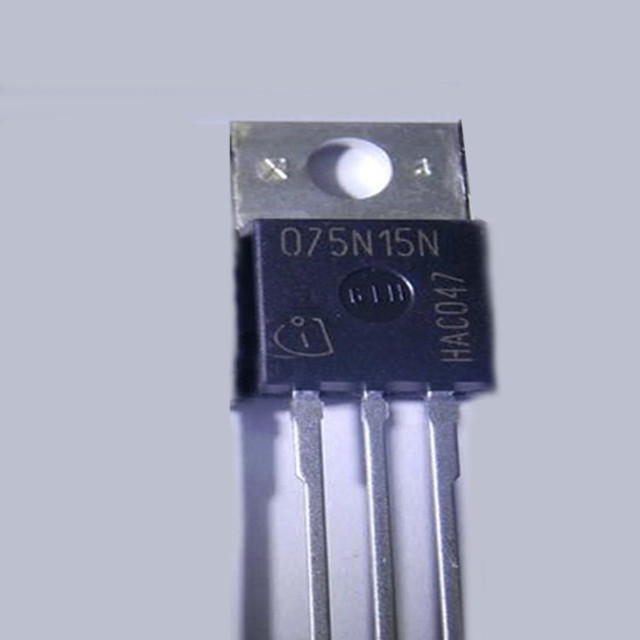

IPP075N15N3G
ریال1.200.000
N-Mosfet/1 Channel/150V/100A/6.2 mOhms
59 در انبار
- Manufacturer:Infineon
- Product Category:75N15
- RoHS:Details
- Technology:Si
- Mounting Style:Through Hole
- Package / Case:TO-220-3
- Number of Channels:1 Channel
- Transistor Polarity:N-Channel
- Vds – Drain-Source Breakdown Voltage:150 V
- Id – Continuous Drain Current:100 A
- Rds On – Drain-Source Resistance:6.2 mOhms
- Vgs – Gate-Source Voltage:20 V
- Vgs th – Gate-Source Threshold Voltage:2 V
- Qg – Gate Charge:93 nC
- Minimum Operating Temperature:- 55 C
- Maximum Operating Temperature:+ 175 C
- Pd – Power Dissipation:300 W
- Configuration:Single
- Channel Mode:Enhancement
- Tradename:OptiMOS
- Packaging:Tube
- Height:15.65 mm
- Length:10 mm
- Series:OptiMOS 3
- Transistor Type:1 N-Channel
- Width:4.4 mm
- Brand:Infineon Technologies
- Forward Transconductance – Min:65 S
- Fall Time:14 ns
- Product Type:MOSFET
- Rise Time:35 ns
- Factory Pack Quantity:500
- Subcategory:MOSFETs
- Typical Turn-Off Delay Time:46 ns
- Typical Turn-On Delay Time:25 ns
- Unit Weight:6 g
| وزن | 0,1 گرم |
|---|---|
| Package | TO-220 |
