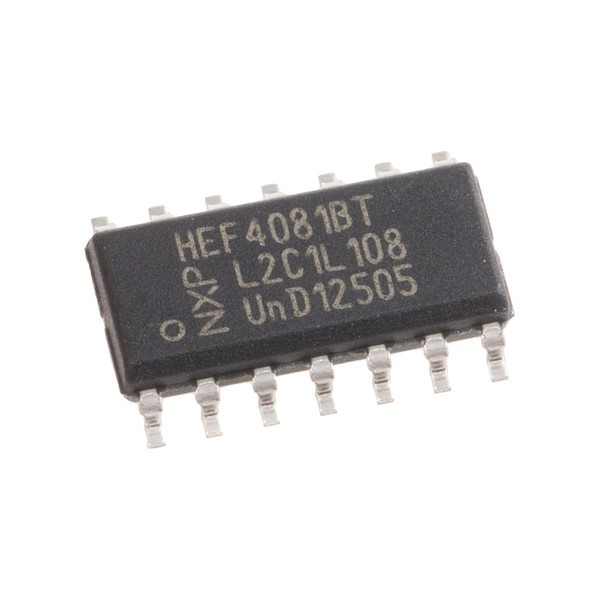

HEF4081BT – SMD

Name: HEF4081BT - SMD
SKU: 2939
Availability: InStock

ریال130.680

SMD,Quad 2-Input AND Gate-CMOS

2501 در انبار

شناسه محصول: 2939 دسته: CMOS Logic, آی سی ها

Product Category: Logic Gates
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Single-Function Gate
- Logic Function: AND
- Logic Family: CD4000
- Number of Gates: 4 Gate
- Number of Input Lines: 2 Input
- Number of Output Lines: 1 Output
- High Level Output Current: – 1.5 mA
- Low Level Output Current: 1.5 mA
- Propagation Delay Time: 12 ns
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Packaging: Reel
- Brand: Texas Instruments
- Function: AND
- Height: 1.58 mm
- Input Type: CMOS
- Length: 8.65 mm
- Logic Type: 2-INPUT AND
- Minimum Operating Temperature: – 55 C
- Number of Bits: 4 bit
- Operating Supply Current: 15 uA
- Operating Supply Voltage: 10 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Type: CMOS
- Quiescent Current: 20 nA
- Series: CD4081B , HEF4081BT , HCF4081B , TC4081B
- Factory Pack Quantity: 2500
- Width: 3.91 mm
- Unit Weight: 0.5 mg
- آی سی CD4081B شامل 4 عدد گیت NAND با دو ورودی می باشد.
