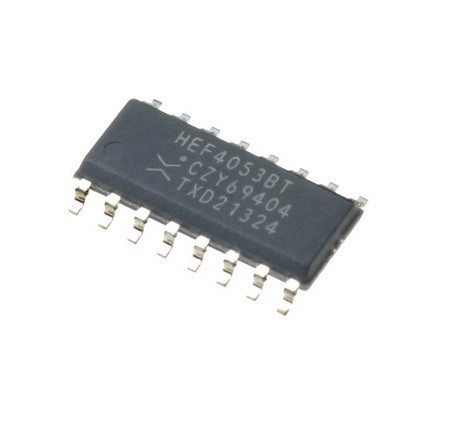

HEF4053BT – SMD

Name: HEF4053BT - SMD
SKU: 2989
Availability: InStock

ریال114.400

Triple 2-channel analogue multiplexer/demultiplexer-4053

2566 در انبار

شناسه محصول: 2989 دسته: CMOS Logic, آی سی ها

Product Category: Multiplexer Switch ICs
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Multiplexers/Demultiplexers
- Number of Channels: 3 Channel
- Configuration: 3 x 2:1
- On Resistance – Max: 240 Ohms
- On Time – Max: 1.2 us
- Off Time – Max: 420 ns
- Operating Supply Voltage: 5 V to 18 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Bandwidth: 30 Mhz
- Brand: Texas Instruments
- Height: 4.57 mm (Max)
- Length: 19.94 mm (Max)
- Maximum Dual Supply Voltage: +/- 9 V
- Minimum Operating Temperature: – 55 C
- Packaging: Tube
- Pd – Power Dissipation: 700 mW
- Propagation Delay Time: 55 ns at 5 V, 35 ns at 10 V, 25 ns at 15 V
- Series: CD4053B , HEF4053B , HCF4053B
- Factory Pack Quantity: 40
- Supply Current – Max: 100 uA
- Supply Type: Single Supply, Dual Supply
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 5 V
- Width: 7.87 mm (Max)
- Unit Weight: 200 mg
- آی سی CD4053BE شامل 3 مالتی پلکسر 2 به یک می باشد.
