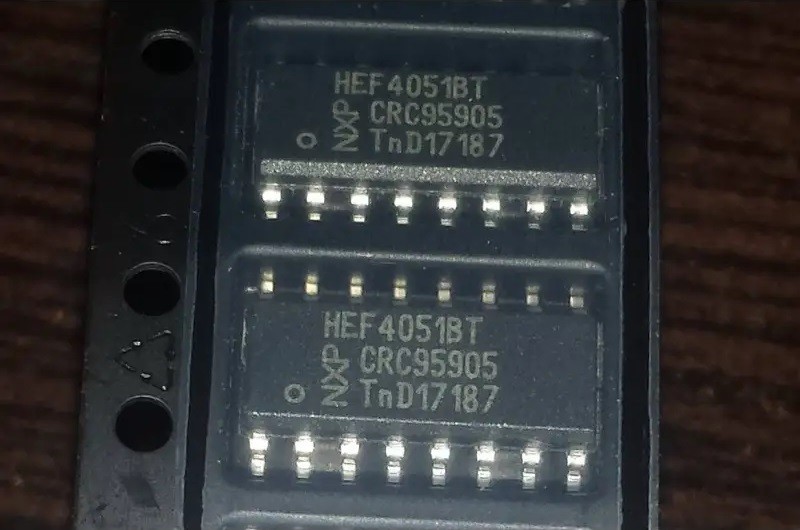

HEF4051BT – SMD

Name: HEF4051BT - SMD
SKU: 2988
Availability: InStock

ریال110.000

8CH Analog Mux/Dmux

3291 در انبار

شناسه محصول: 2988 دسته: CMOS Logic, آی سی ها

Product Category: Multiplexer Switch ICs
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Multiplexers/Demultiplexers
- Number of Channels: 8 Channel
- Configuration: 1 x 8:1
- On Resistance – Max: 240 Ohms
- On Time – Max: 720 ns
- Off Time – Max: 450 ns
- Operating Supply Voltage: 5 V to 18 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Bandwidth: 20 Mhz
- Brand: Texas Instruments
- Height: 1.58 mm
- Length: 9.9 mm
- Maximum Dual Supply Voltage: +/- 9 V
- Minimum Operating Temperature: – 55 C
- Packaging: Tube
- Pd – Power Dissipation: 700 mW
- Propagation Delay Time: 60 ns
- Series: CD4051B , HEF4051B , HCF4051B
- Factory Pack Quantity: 40
- Supply Current – Max: 100 uA
- Supply Type: Single Supply, Dual Supply
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 5 V
- Width: 3.91 mm
- Unit Weight: 200 mg
- آی سی CD4051B شامل یک مالتی پلکسر/دیمالتی پلکسر 1 به 8 می باشد.
