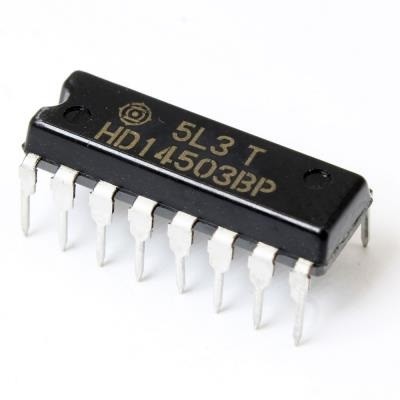

HD14503BP – DIP

Name: HD14503BP - DIP
SKU: 2942
Availability: InStock

ریال418.176

2-4Bit Hex Non-Invert. Buffer-CMOS

71 در انبار

شناسه محصول: 2942 دسته: CMOS Logic, آی سی ها

Product Category: Buffers & Line Drivers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Input Lines: 6 Input
- Number of Output Lines: 6 Output
- Polarity: Non-Inverting
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Buffer/Line Driver
- Height: 4.57 mm
- High Level Output Current: – 8.2 mA
- Input Signal Type: Single-Ended
- Length: 19.3 mm
- Logic Family: CD4000
- Logic Type: CMOS
- Low Level Output Current: 19.2 mA
- Minimum Operating Temperature: – 55 C
- Number of Channels: 5
- Operating Supply Current: 60 uA
- Operating Supply Voltage: 3 V to 18 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Type: 3-State
- Pd – Power Dissipation: 100 mW
- Propagation Delay Time: 150 ns at 5 V, 70 ns at 10 V, 50 ns at 15 V
- Quiescent Current: 40 nA
- Series: CD4503B , HEF4503B , HCF4503 , TC4503B
- Factory Pack Quantity: 25
- Supply Current – Max: 20 uA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4503BE شامل یک درایور خط یا بافر 6 تایی می باشد.
