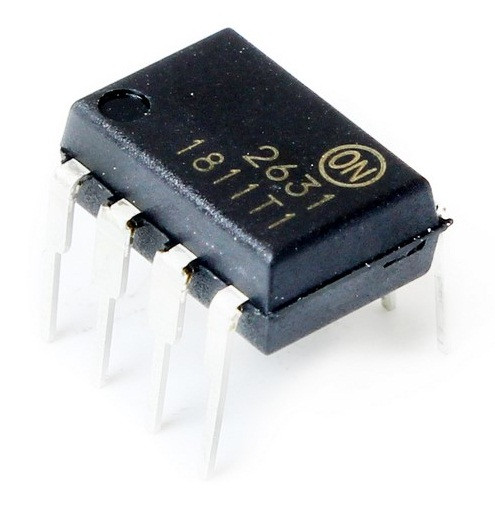

HCPL2631

Name: HCPL2631
SKU: 14346
Availability: InStock

ریال1.176.120

اپتوکوپلر سرعت بالا Dual Channel, High Speed Transistor Optocouplers

271 در انبار

شناسه محصول: 14346 دسته: Optocoupler, آی سی ها

Manufacturer: ON Semiconductor
- Product Category: High Speed Optocouplers
- RoHS: Details
- Package / Case: PDIP-8
- Data Rate: 10 Mb/s
- Number of Channels: 2 Channel
- Output Type: Open Collector
- Isolation Voltage: 5000 Vrms
- Vf – Forward Voltage: 1.4 V
- If – Forward Current: 10 mA
- Vr – Reverse Voltage: 5 V
- Pd – Power Dissipation: 60 mW
- Minimum Operating Temperature: – 40 C
- Maximum Operating Temperature: + 85 C
- Series: HCPL2631
- Packaging: Tube
- Height: 3.94 mm
- Length: 9.91 mm
- Output Current: 50 mA
- Width: 6.86 mm
- Brand: ON Semiconductor / Fairchild
- Fall Time: 12 ns
- Maximum Collector Current: 50 mA
- Product Type: High Speed Optocouplers
- Rise Time: 50 ns
- Factory Pack Quantity: 1000
- Subcategory: Optocouplers
- Part # Aliases: HCPL2631_NL
- Unit Weight: 0.014110 oz
