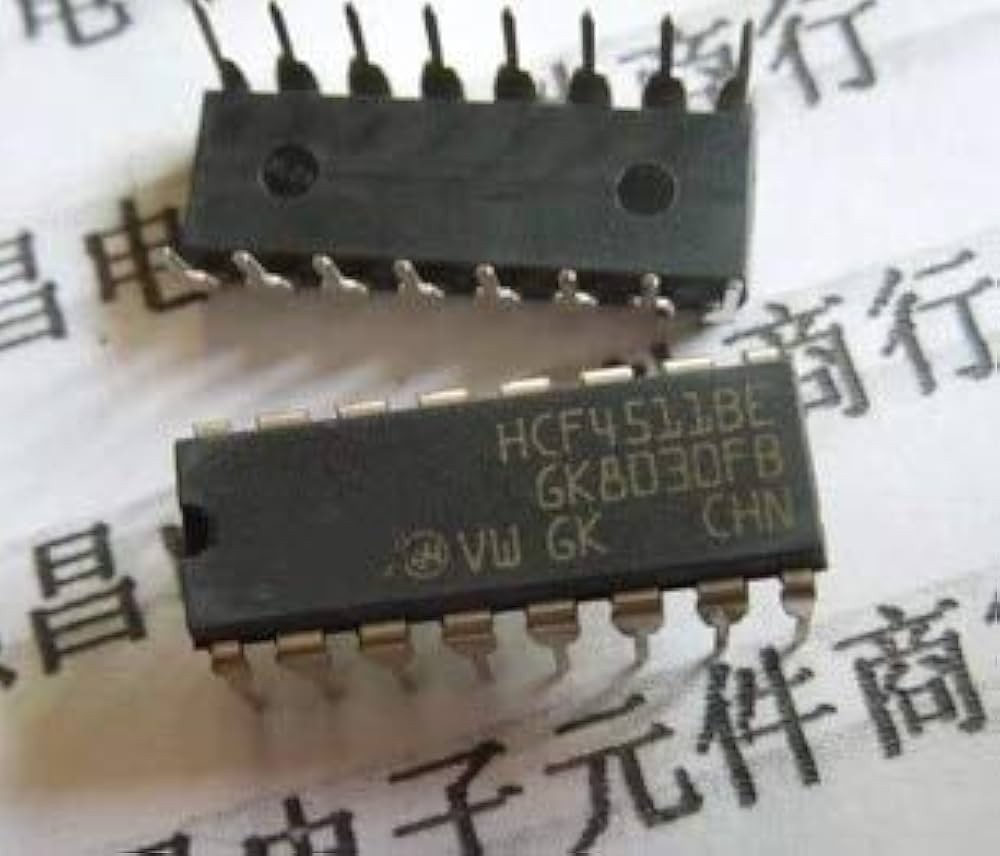

HCF4511BE – DIP

Name: HCF4511BE - DIP
SKU: 2943
Availability: InStock

ریال365.904

BCD/7-Seg. Latch/Decoder/Driv-CMOS 4511

169 در انبار

شناسه محصول: 2943 دسته: CMOS Logic, آی سی ها

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers & BCD TO SEVEN SEGMENT
- Manufacturer: ST & NXP
- RoHS: RoHS Compliant Details
- Product: Decoders / Demultiplexers
- Logic Family: CD4000
- Number of Input Lines: 4 Input
- Number of Output Lines: 7 Output
- Propagation Delay Time: 420 ns
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: ST
- Height: 4.57 mm
- High Level Output Current: – 1.5 mA
- Length: 19.3 mm
- Low Level Output Current: 1.5 mA
- Maximum Clock Frequency: 8 MHz
- Minimum Operating Temperature: – 55 C
- Operating Supply Voltage: 3 V to 18 V
- Operating Temperature Range: – 55 C to + 125 C
- Series: CD4511B , HEF4511B , HCF4511B , TC4511B
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4511BE یک دیکدر 4 به 7 سازگار با سون سگمنت می باشد.
