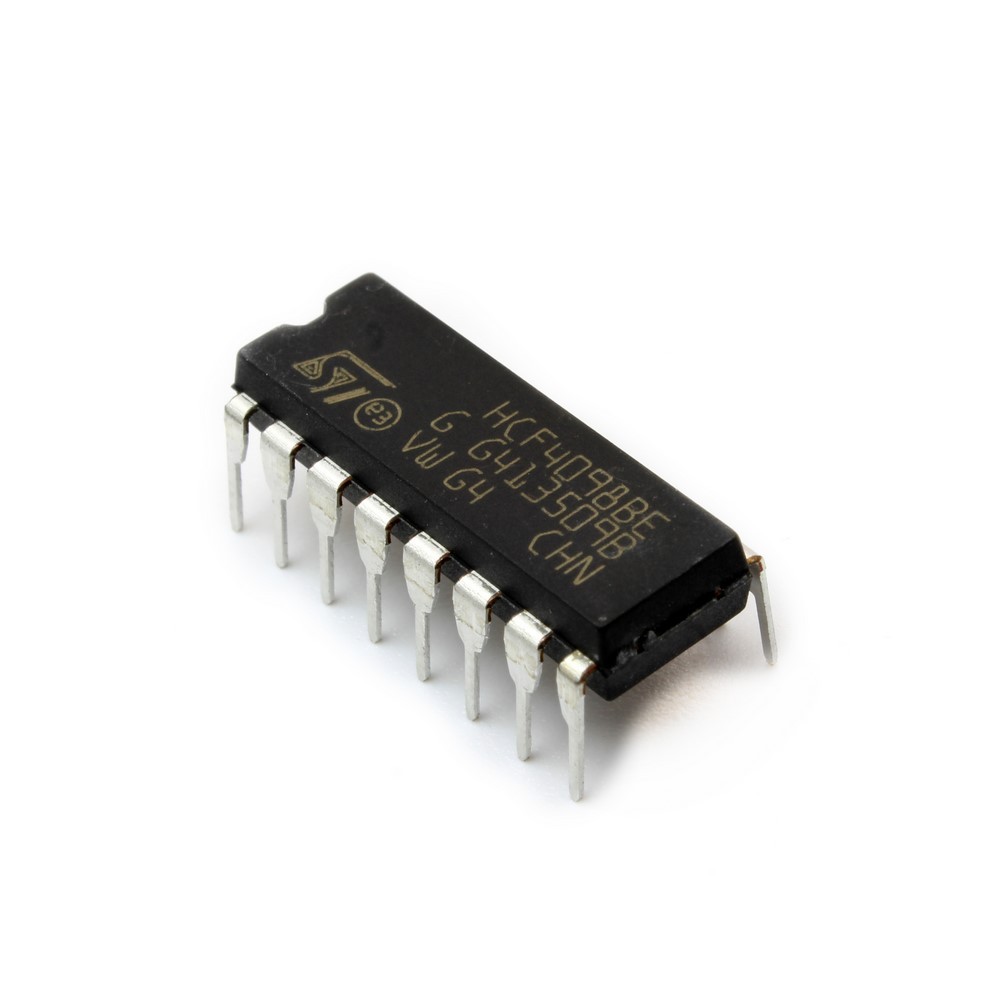

HCF4098BE – DIP

Name: HCF4098BE - DIP
SKU: 2976
Availability: InStock

ریال287.496

Dual Monostable Multivibrator-CMOS

33 در انبار

شناسه محصول: 2976 دسته: CMOS Logic, آی سی ها

Product Category: Monostable Multi-vibrator
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Elements per Chip: 2
- Logic Family: CD4000
- Logic Type: Monostable Multivibrator
- Package/Case: PDIP-16
- Supply Current – Max: 0.02 mA
- Propagation Delay Time: 500 ns, 250 ns, 200 ns
- High Level Output Current: – 4.2 mA
- Low Level Output Current: 4.2 mA
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Pd – Power Dissipation: 500 mW
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 55 C
- Packaging: Tube
- Brand: Texas Instruments
- Height: 4.57 mm
- Length: 19.3 mm
- Mounting Style: Through Hole
- Operating Supply Voltage: 3.3 V, 5 V, 9 V, 12 V
- Series: CD4098B , HEF4098B , HCF4098B
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4098BE شامل دو مولتی ویبراتور می باشد.
