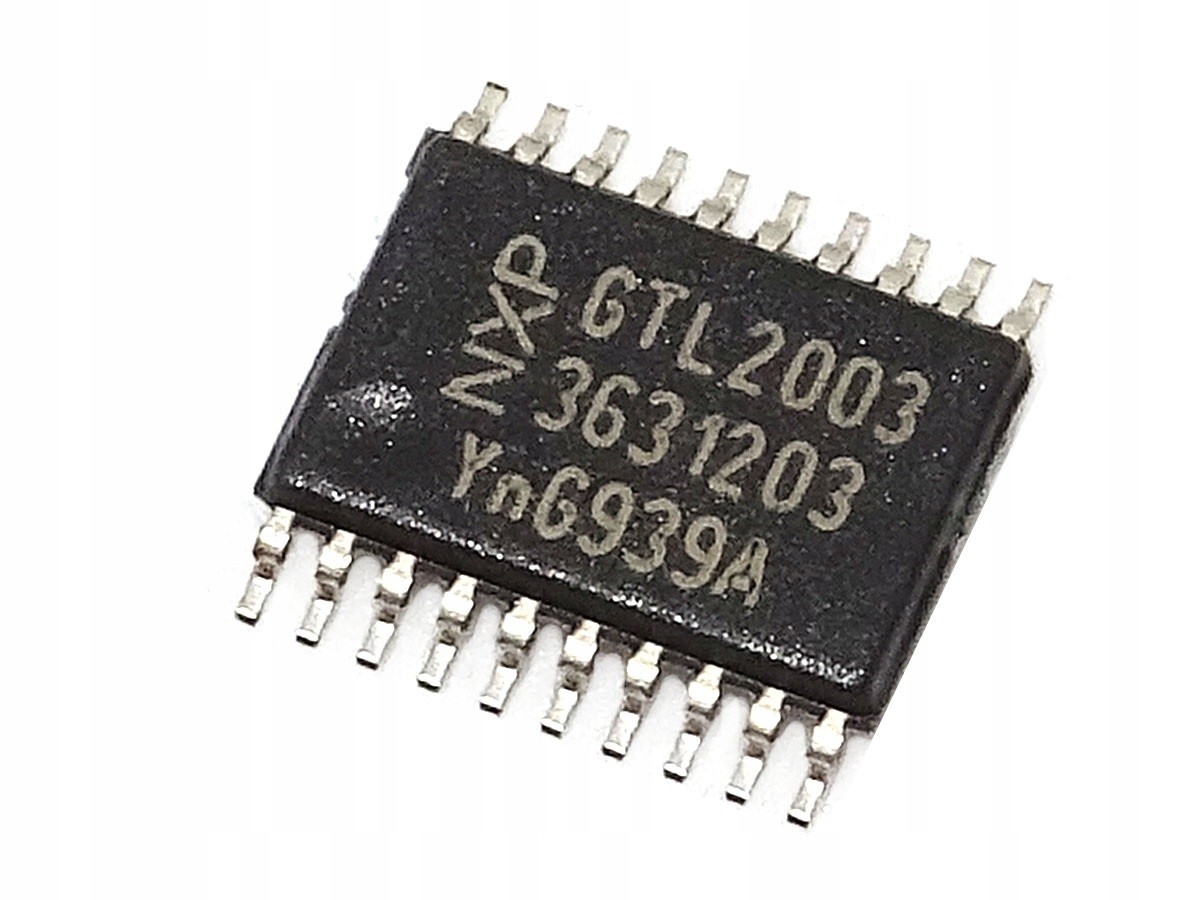

GTL2003PW – SMD

Name: GTL2003PW - SMD
SKU: 5000
Availability: InStock

ریال2.475.000

8Bit bidirectional low voltage translator

96 در انبار

شناسه محصول: 5000 دسته: Other IC, آی سی ها

 8-bit bidirectional low voltage translator 
Allows voltage level translation between 0.8 V, 0.9 V, 1.0 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V buses which allows direct interface with GTL, GTL+, LVTTL/TTL and 5 V CMOS levels 
Provides bidirectional voltage translation with no direction pin
 Low 6.5  ON-state resistance (Ron) between input and output pins (Sn/Dn) 
Supports hot insertion 
No power supply required: will not latch up
5V tolerant inputs 
Low standby current 
Flow-through pinout for ease of printed-circuit board trace routing 
ESD protection exceeds 2000V HBM per JESD22-A114, and 1000 V CDM per JESD22-C101 
Packages offered: TSSOP20,
