ESP32-WROVER

ESP32 دارای بلوتوث و وایفای Esp۳۲ نسل تکامل یافته ESP۸۲۶۶ است که بارزترین تفاوت آن بلوتوث داخلی آن می باشد . دارای هسته وافای ۲,۴ گیگا هرتز و بلوتوث داخلی تولید شده با تکنولوژی ۴۰ نانومتری شرکت TSMC می باشد این برد وای فای دارای بهترین پرفورمنس در مصرف انرژی می باشد.

Description:

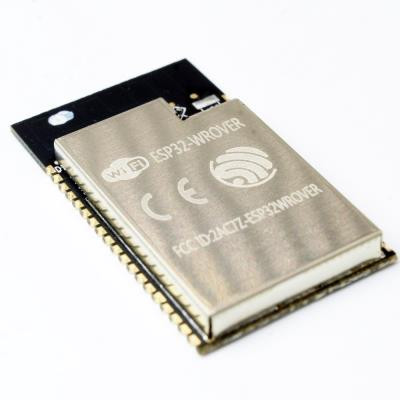

ESP32-WROVER is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding. At the core of this module is the ESP32-D0WDQ6 chip*, same as ESP-WROOM-32 module. Compared to ESPWROOM-32, ESP32-WROVER has an additional SPI Pseudo static RAM (PSRAM) of 32 Mbits. As such, ESP32- WROVER features both 4 MB external SPI flash and 4 MB external PSRAM. The ESP32-WROVER module has a PCB antenna, while the ESP32-WROVER-I uses an IPEX antenna. The information in this datasheet is applicable to both of the two modules. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the clock frequency is adjustable from 80 MHz to 240 MHz. The user may also power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.
The integration of Bluetooth, Bluetooth LE and Wi-Fi ensures that a wide range of applications can be targeted, and that the module is future proof: using Wi-Fi allows a large physical range and direct connection to the internet through a Wi-Fi router, while using Bluetooth allows the user to conveniently connect to the phone or broadcast low energy beacons for its detection. The sleep current of the ESP32 chip is less than 5 µA, making it suitable for battery powered and wearable electronics applications. ESP32 supports a data rate of up to 150 Mbps, and 22 dBm output power at the antenna to ensure the widest physical range. As such the chip does offer industry-leading specifications and the best performance for electronic integration, range, power consumption, and connectivity. The operating system chosen for ESP32 is freeRTOS with LwIP; TLS 1.2 with hardware acceleration is built in as well. Secure (encrypted) over the air (OTA) upgrade is also supported, so that developers can continually upgrade their products even after their release.
FEATURES
WLAN Standard: 802.11 b / g / n / e / i
Supported WiFi Band: 2.4GHz
Supported Interfaces: SDIO, SPI, UART
Embedded Flash Size: 32-Mbit SRAM, 32-Mbit flash
Operating Temperature: -40oC ~ + 125oC
QUALITY COMMITMENT
Environmental: RoHS Compliant
