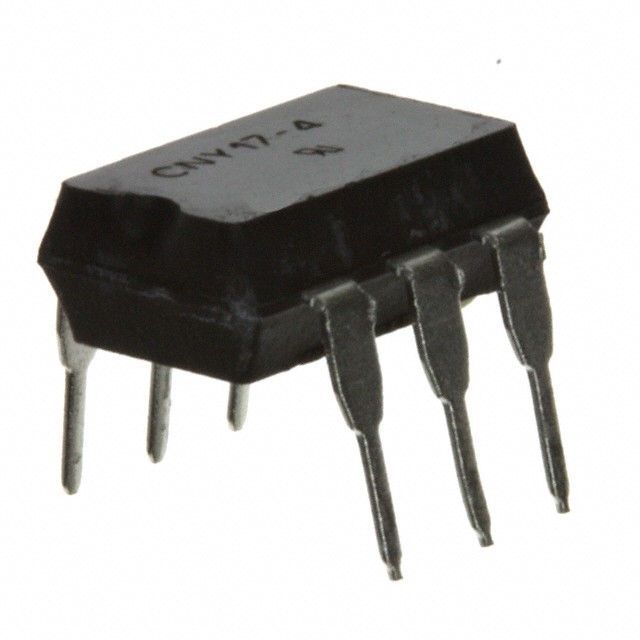

CNY17-4 DIP

Name: CNY17-4 DIP
SKU: 12257
Availability: InStock

ریال176.418

6PIN- Ac input Type Photocoupler,CNY17-4 اپتو کوپلر

27 در انبار

شناسه محصول: 12257 دسته: Optocoupler, آی سی ها

Product Category: Transistor Output Optocouplers
- Manufacturer: Vishay
- RoHS: RoHS Compliant Details
- Package/Case: DIP-6
- Output Type: NPN Phototransistor
- Number of Channels: 1 Channel
- If – Forward Current: 60 mA
- Maximum Collector Emitter Voltage: 70 V
- Maximum Collector Current: 100 mA
- Isolation Voltage: 5000 Vrms
- Maximum Collector Emitter Saturation Voltage: 0.4 V
- Vf – Forward Voltage: 1.65 V
- Vr – Reverse Voltage: 6 V
- Pd – Power Dissipation: 150 mW
- Maximum Operating Temperature: + 100 C
- Minimum Operating Temperature: – 55 C
- Series: CNY
- Packaging: Tube
- Brand: Vishay Semiconductors
- Collector-Emitter Breakdown Voltage: 70 V
- Current Transfer Ratio: 320 %
- Fall Time: 15 us
- Height: 3.81 mm
- Length: 8.7 mm
- Mounting Style: Through Hole
- Rise Time: 4.6 us
- Factory Pack Quantity: 50
- Width: 6.5 mm
- اپتو کوپلر ، فوتو کوپلر ، ایزولاتور ،PHOTOCUPLER
