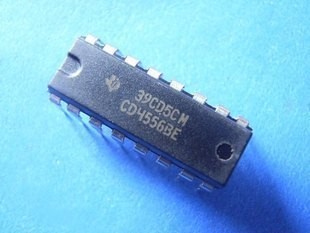

CD4556BE – DIP

Name: CD4556BE - DIP
SKU: 3000
Availability: InStock

ریال65.340

CMOS- 16pin DUAL 1-OF-4 DECODER/DEMU

102 در انبار

شناسه محصول: 3000 دسته: CMOS Logic, آی سی ها

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Decoders / Demultiplexers
- Logic Family: CD4000
- Number of Input Lines: 1 Input
- Number of Output Lines: 4 Output
- Propagation Delay Time: 190 ns
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Dual Binary 1-of-4
- Height: 4.57 mm
- High Level Output Current: – 1.5 mA
- Input Voltage: – 0.5 V to + 0.5 V
- Length: 19.3 mm
- Logic Type: Decoders/Demultiplexers
- Low Level Output Current: 1.5 mA
- Maximum Clock Frequency: 8 MHz
- Minimum Operating Temperature: – 55 C
- Number of Circuits: Dual
- Operating Supply Voltage: 3 V to 18 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Current: 5 mA
- Output Voltage: 3 V to 18 V
- Pd – Power Dissipation: 500 mW
- Series: CD4556B , M4556B
- Factory Pack Quantity: 25
- Supply Current – Max: 0.1 mA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4556BE شامل 2 دیکدر 1 به 4 می باشد.
