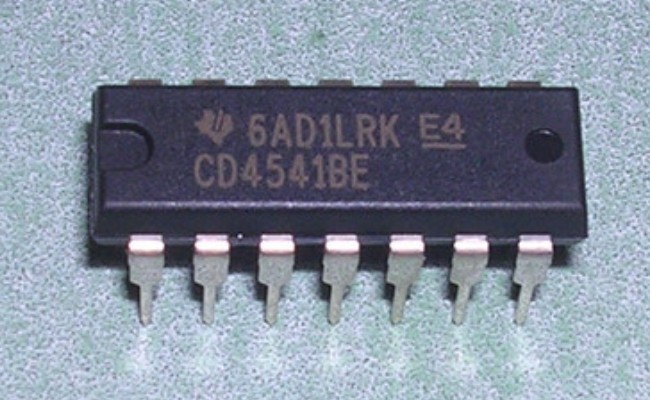

CD4541BE – DIP

Name: CD4541BE - DIP
SKU: 2950
Availability: InStock

ریال313.632

CMOS-PROGRAMMABLE TIMER

120 در انبار

شناسه محصول: 2950 دسته: CMOS Logic, آی سی ها

Product Category: Timers & Support Products
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Type: Programmable
- Number of Internal Timers: 1 Timer
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 55 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Height: 4.57 mm
- High Level Output Current: 4 mA
- Length: 19.3 mm
- Low Level Output Current: 4 mA
- Operating Supply Current: 300 uA
- Output Type: CMOS
- Pd – Power Dissipation: 100 mW
- Propagation Delay – Max: 10000 ns
- Series: CD4541B , HEF4541B , HCF4541B
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4541BE شامل یک تایمر قابل برنامه ریزی می باشد.
