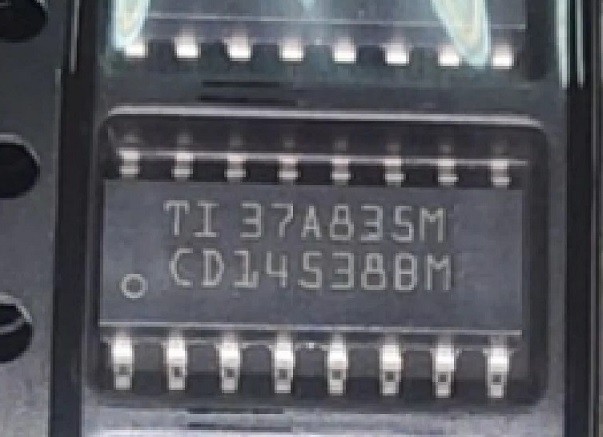

CD4538BM – SMD

Name: CD4538BM - SMD
SKU: 2979
Availability: InStock

ریال222.156

Dual Precision Monostable MV-4538

327 در انبار

شناسه محصول: 2979 دسته: CMOS Logic, آی سی ها

Product Category: Monostable Multi-vibrator
- Manufacturer: Fairchild Semiconductor
- RoHS: RoHS Compliant Details
- Elements per Chip: 2
- Logic Family: CD4000
- Logic Type: Monostable Multivibrator
- Package/Case: SOIC-16 Narrow
- Supply Current – Max: 0.02 mA
- Propagation Delay Time: 600 ns, 300 ns, 220 ns
- High Level Output Current: – 4.2 mA
- Low Level Output Current: 4.2 mA
- Supply Voltage – Max: 15 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 55 C
- Packaging: Tube
- Brand: Fairchild Semiconductor
- Height: 1.5 mm
- Length: 10 mm
- Mounting Style: SMD/SMT
- Operating Supply Voltage: 3.3 V, 5 V, 9 V, 12 V
- Factory Pack Quantity: 2500
- Width: 4 mm
- Unit Weight: 0.5 mg
- CD14538BM , HCF4538BT , HEF4538BT
- آی سی CD4538B شامل دو مولتی ویبراتور می باشد.
