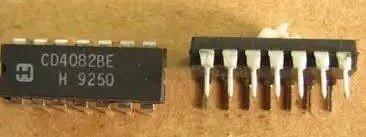

CD4082BE – DIP

Name: CD4082BE - DIP
SKU: 2940
Availability: InStock

ریال158.122

Dual 4-Input AND Gate-CMOS

44 در انبار

شناسه محصول: 2940 دسته: CMOS Logic, آی سی ها

Product Category: Logic Gates
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Single-Function Gate
- Logic Function: AND
- Logic Family: CD4000
- Number of Gates: 2 Gate
- Number of Input Lines: 4 Input
- Number of Output Lines: 1 Output
- High Level Output Current: – 1.5 mA
- Low Level Output Current: 1.5 mA
- Propagation Delay Time: 120 ns
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Dual 4-Input
- Height: 4.57 mm
- Input Type: CMOS
- Length: 19.3 mm
- Logic Type: 4-Input AND
- Minimum Operating Temperature: – 55 C
- Number of Bits: 2 bit
- Operating Supply Current: 15 uA
- Operating Supply Voltage: 10 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Type: CMOS
- Quiescent Current: 20 nA
- Series: CD4082B , HEF4082B , HCF4082B , TC4082B
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4082B شامل 2 گیت AND با 4 ورودی می باشد.
